01
You bend
Carbon steel pipe
Telhoo fits
45# steel dies as standard, Cr12 optional for longer tooling life.
CNC Automatic Pipe Bending Machine
Nine Fully Automatic Models From Φ38 To Φ219
As a CNC pipe bending machine manufacturer since 1991, Telhoo builds nine fully automatic models with electric bending, feeding and rotating plus hydraulic clamping and a moving mandrel. This CNC tube bending machine range covers thin furniture tube up to Φ219 × 20 mm thick-wall pipe, bending up to 190° per bend.
The Machines
CNC Pipe Bending Machines 38CNC To 219CNC
Pipe Bending Machine 115CNC
View Details
Pipe Bending Machine 130CNC
View Details
Pipe Bending Machine 168CNC
View Details

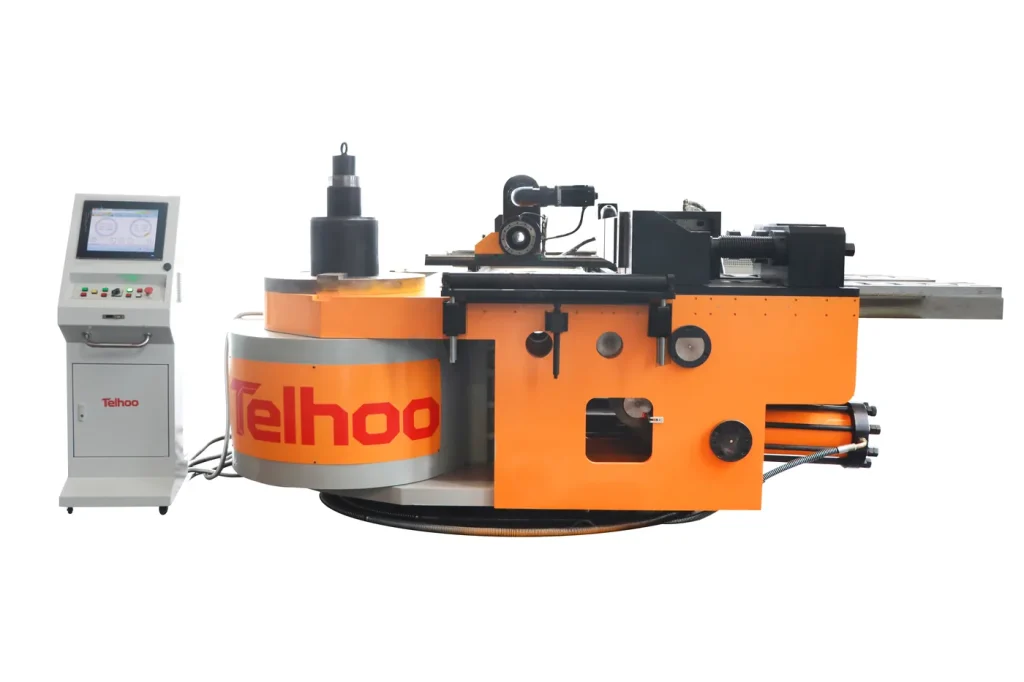

Pipe Bending Machine 219CNC
View Details
Pipe Bending Machine 38CNC
View Details
Pipe Bending Machine 50CNC
View Details
Pipe Bending Machine 63CNC
View Details
Pipe Bending Machine 75CNC
View Details
Pipe Bending Machine 89CNC
View DetailsNeed Large-Radius Circles, Arcs Or Spirals?
This page focuses on CNC rotary-draw bending for accurate angle bends. For gradual circular parts, visit the dedicated Pipe Rolling Machine range.
Model Comparison
Compare All Nine CNC Pipe Bender Models
Every automatic pipe bending machine in this range shares the same servo-driven control platform; the model number is the maximum tube OD in mm. Smaller models bend faster, larger models bend heavier wall. All figures below come from Telhoo factory data sheets.
| Model | Max BendingΦ × wall, mm | Mandrel Lengthmm | Bending Speed°/s | Feeding Speedmm/s | Rotating Speed°/s | Precisionbend / feed | Max Bending Degree | Max Bend Radiusmm | Weightt |
|---|---|---|---|---|---|---|---|---|---|
| 38CNC | Φ38.1 × 2 | 3000 | 30–100 | 25–900 | 30–200 | ±0.1° / ±0.1 mm | 190° | 175 | 1.4 |
| 50CNC | Φ50.8 × 3 | 3000 | 30–100 | 25–900 | 30–200 | ±0.1° / ±0.1 mm | 190° | 250 | 1.5 |
| 63CNC | Φ63.5 × 2.5 | 3000 | 30–100 | 25–900 | 30–200 | ±0.1° / ±0.1 mm | 190° | 250 | 1.8 |
| 75CNC | Φ76.2 × 3 | 3800 | 20–35 | 200–700 | 25–180 | ±0.1° / ±0.1 mm | 190° | 300 | 3.2 |
| 89CNC | Φ88.9 × 3 | 3800 | 15–32 | 20–700 | 20–150 | ±0.1° / ±0.1 mm | 190° | 300 | 3.4 |
| 115CNC | Φ115 × 6 | 5000 | 20–30 | 150–600 | 25–120 | ±0.1° / ±0.1 mm | 190° | 500 | 6 |
| 130CNC | Φ130 × 8 | 5000 | 20–30 | 150–600 | 25–120 | ±0.1° / ±0.1 mm | 190° | 500 | 7 |
| 168CNC | Φ168 × 15 | 6000 | 8 | 200 | 20 | ±0.1° / ±0.1 mm | 190° | 800 | 12 |
| 219CNC | Φ219 × 20 | — | Max 25 | Max 400 | Max 50 | ±0.1° / ±0.1 mm | 190° | 900 | 18 |
Every control stores 2000 part files and programs 32 bends per pipe on PLC, or 99 on CNC control. Speeds vary with pipe size and wall thickness, so confirm the final configuration for your tube with our engineers before ordering.
B
Y
C
1
2
3
How A CNC Bender Runs
Y, B, C: Three Letters Bend The Whole Part
A bend program on the touch screen is just a list of Y, B, C values. Each letter is one electric servo axis of the machine, and the operator only loads the tube.
- Y
Feed The Tube
Electric pipe feeding along the bed, precision ±0.1 mm.
- B
Rotate Between Bends
Electric rotating sets the plane of the next bend, precision ±0.1°.
- C
Bend The Angle
Electric bending up to 190° per bend, precision ±0.1°.
- 1
Hydraulic Clamping
Clamp and pressure die hold the tube with hydraulic force.
- 2
Hydraulic Moving Mandrel
The mandrel supports the tube wall from inside and retracts hydraulically, matched to each model and tube length.
- 3
Touch Screen PLC
Y, B, C or X, Y, Z input in English or any other language. Industrial PC with 3D simulation and CAD import optional.
Order Configuration
The Nameplate Tells You What The Machine Can Do
Telhoo pipe bending equipment is ordered the way the nameplates read: a capacity number plus function letters, then options on the order sheet.
JIANGSU TELHOO MACHINERY MANUFACTURING CO., LTD.
75
CNC
TR
LR
Reads: bends up to Φ76.2 × 3 mm, fully automatic, triple radius tooling, bends left and right
CEISO9001ULEAC
Nameplate & Option Codes
- CNCFully automatic
- SRSingle radius die, one stack (standard)
- DRDouble radius, two stacks (optional)
- TRTriple radius, three stacks (optional)
- QRQuadruple radius, four stacks (optional)
- MRMulti radius, multi stacks (optional)
- LRLeft and right two-direction bending
- RRolling / pushing function
- PPunching (optional)
- CCutting (optional)
- E / HElectric (standard) or hydraulic (optional) bend drive
- 75The number is always the max tube OD in mm
- 3A1SFactory full codes add the DW series prefix plus axes and stacks: DW75CNC-3A1S runs 3 servo axes with a single radius die stack
Option Sheet
Add What Your Parts Need
Tick the options you need, they are written into your enquiry for our engineers.
Dies And Tooling
Your Pipe Material Decides The Die Set
A bender is only as good as its tooling, so Telhoo matches die material to pipe material. Tell us what you bend and the die set comes matched.
02
You bend
Stainless steel pipe
Telhoo fits
Aluminum copper alloy mandrel and wiper, so there is no galling on the stainless surface.
03
You bend
Aluminum pipe
Telhoo fits
Nylon bend, clamp and pressure dies protect the soft aluminum surface.
Every machine ships with sealing ring, sensors, spanner and operation manual.
Applications
Where CNC Pipe Benders Go To Work
Telhoo CNC pipe benders form round, square and profile tube in mild steel, stainless steel, copper and aluminum for these industries worldwide.
CNC Workshop VideoReal 115CNC footage and workshop photos show the machine body, bending head and production environment behind the CNC automatic pipe bending range.
Automotive Exhaust & Frames
Muffler and exhaust pipe (often mandrel-bent), seat frames, roll-cage tube and chassis tube in round and profile sections.
HVAC & Refrigeration
Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.
Furniture & Fitness Equipment
Chair and table frames, gym racks and equipment tube with clean, consistent parts.
Shipbuilding & Marine
Thick-wall carbon steel pipe and pipe spools for marine, offshore and structural fabrication.
Boiler & Heat Exchanger
Serpentine and coil tube for boilers, heat exchangers and power equipment.
Construction & Handrail
Stair rails, guardrails and architectural tube in stainless and mild steel.
How We Deliver
From Inquiry To Installation
1
Requirement & Pipe Analysis
We review your tube size, wall thickness, material, bend radius and target output.
2
Model & Tooling Proposal
We confirm the right CNC model and match bend, clamp, pressure and mandrel dies.
3
Manufacturing & Assembly
Your machine is built and assembled in our 30,000 m² factory.
4
Sample Bending & Test
We bend your sample parts and inspect them before shipment, FAT on request.
5
Export Packing & Shipping
Heavy-duty seaworthy packing, full documents and door-to-door logistics.
6
Install, Train & Support
Overseas installation, operator training and long-term spare parts.
Why Telhoo
A Pipe Processing Partner, Not Just A Machine
Jiangsu Telhoo has manufactured pipe bending, cutting, chamfering and end forming machines for over 35 years and exports to buyers in more than 65 countries. Every machine is backed by in-house R&D, full tooling support and after-sales service.
- In-house R&D, machining and assembly
- CE, ISO9001, UL and EAC certified
- Non-standard and OEM machines built to your line
Telhoo By The Numbers
Zhangjiagang, China
Experience
35+
Years manufacturing pipe processing machinery
Facility
30,000 m²
Modern production plant with in-house R&D
Export
65+
Countries served across five continents
Response
24 h
Typical reply time on your quotation
Export & Delivery
From Our Factory To The World
Every Telhoo machine is tested, crated and loaded in our own Zhangjiagang yard, then shipped by sea with full export documents — so it arrives ready to install.
01Crating & Bracing
Each machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.
02Iron-Frame Packing
Heavy machines get an iron-frame base and sealed case, rated for long ocean freight.
03Container Loading
We load 20ft, 40ft and open-top containers in our own yard and send photos before departure.
04Worldwide Shipping
Machines leave Zhangjiagang by sea to buyers in 65+ countries, with complete export paperwork.
Iron-frame packaging, container loading and export documentation are a standard part of every Telhoo order — supported by our own foreign-trade team.
Request A Quote
Tell Us What You Need To Make
Send your tube or pipe specs and our engineers will recommend the right Telhoo machine or process — with a detailed quotation, usually within one working day.
- 1Send Your Requirements
Share tube size, wall thickness, material, bend radius and quantity.
- 2Engineering Review
We confirm feasibility, tooling and the right machine or process.
- 3Tailored Quote In 24h
You receive a detailed quotation, usually within one working day.
CNC Bender FAQ
CNC Pipe Bending Machine FAQ
Common questions buyers ask before choosing a CNC pipe bender model and configuration.
The model number is the maximum tube outside diameter in mm: the 38CNC bends up to Φ38.1 × 2 mm, the 75CNC up to Φ76.2 × 3 mm and the 219CNC up to Φ219 × 20 mm thick-wall pipe. Compare all nine models in the table above, then send your pipe data for confirmation.
Every model includes touch screen PLC control, ±0.1° bending precision, ±0.1 mm feeding precision, 190° maximum bend angle, working light, automatic lubrication and CE, ISO9001, UL and EAC marking. The control stores 2000 part files and programs 32 bends per pipe on PLC, or 99 on CNC control.
Yes. Options include robot loading and unloading, punching, cutting, rolling and pushing, double to multi radius stacks, left and right two-direction bending, industrial PC with 3D simulation and CAD import, cooling systems and safety devices.
Standard dies are 45# steel, with Cr12 optional for longer life. Stainless steel pipe runs on aluminum copper alloy mandrel and wiper, while aluminum pipe uses nylon bend, clamp and pressure dies to protect the surface.
Telhoo is a CNC pipe bending machine manufacturer and supplier, building every tube bending machine in our own Zhangjiagang factory since 1991 — with in-house R&D, machining, tooling and testing. You buy the machine direct from the factory, not through a middleman, with full CE and ISO9001 documents.
Not sure between two sizes?
GET A FREE QUOTE
Send Your Tube Spec, We Confirm The CNC Model
Share pipe diameter, wall thickness, material and bend radius. Our engineers will confirm the right model, tooling and options, usually within 24 hours.
