Pipe Diameter Range
The model number is the guide capacity in mm. Match it to the largest and smallest pipe OD you chamfer so one machine covers your range.

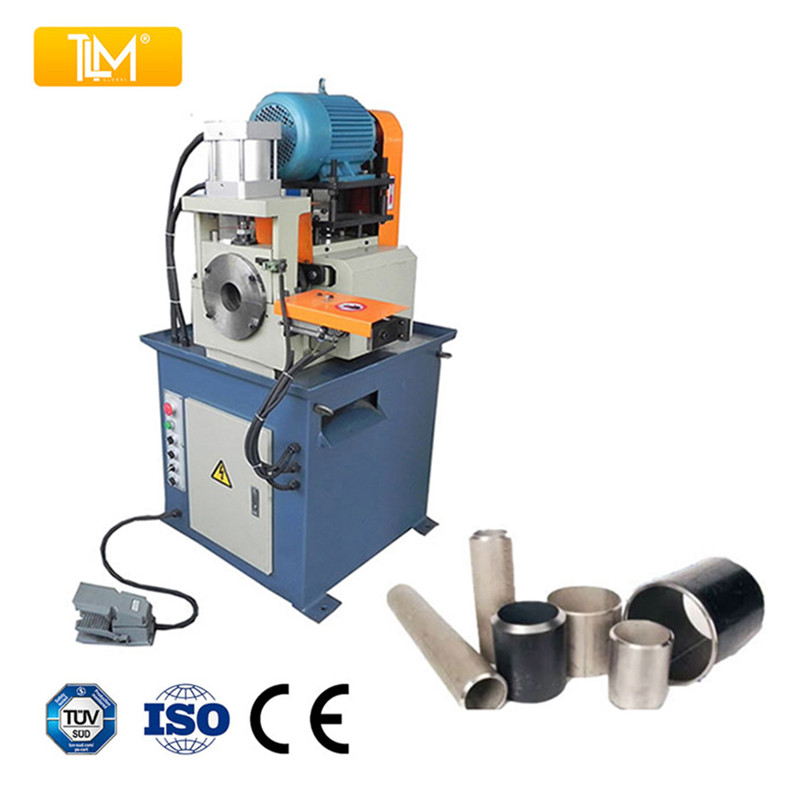

Pipe Chamfering Machine
Two-Step Feed For Clean, Smooth Pipe Ends
Telhoo pipe chamfering machines, also known as tube chamfering machines, chamfer and deburr steel, stainless steel, aluminum, bronze, non-ferrous metal and plastic pipe, working as a pipe chamfering and deburring machine in pneumatic and hydraulic models. With a bevel tool head the same machine doubles as a pipe beveling machine for weld-ready angled ends.
The Range
Pipe Chamfering Machine Models
Pneumatic and hydraulic pipe end machines with two-step feed, a fast approach followed by an adjustable finishing feed for clean, smooth chamfered ends. Suitable for steel, stainless steel, aluminum, bronze, non-ferrous metal and even plastic pipe, ideal for welding preparation and safe tube ends.
How It Works
How A Pipe Chamfering Machine Works
A chamfering machine squares, bevels and deburrs the pipe end so it is ready to weld, assemble or feed into the next process. The tube is clamped, the tool head advances in two stages, and the same cycle repeats part after part with a consistent, burr-free finish. Fit an interchangeable bevel tool head and set the angle, and the same unit works as a pipe beveling machine that opens a true welding bevel, around 30° or 37.5° to a weld standard, instead of only a light chamfer.
- 1
Clamp & Locate The Pipe
The pipe is held square in the clamping jaws so the end runs true to the tool head.
- 2
Fast Approach Feed
The pneumatic or hydraulic head moves quickly up to the pipe end to save cycle time.
- 3
Adjustable Finishing Feed
A slower, adjustable second feed makes the clean chamfer, bevel or deburr cut to depth.
- 4
Return & Unload
The head retracts, the jaws release and the finished pipe is unloaded for the next part.
Reading The Spec
The Four Numbers That Decide Your Model
Chamfering machines are specified by what pipe they hold and how they drive the tool. These four points tell you which model and tooling suit your parts.
Wall Thickness
Thicker walls need more cutting force. Heavier or thick-wall pipe points to the hydraulic 180, while thin-wall tube runs well on the pneumatic 50 or 80.
Pneumatic Or Hydraulic Drive
Pneumatic drive is compact and fast for lighter work. Hydraulic drive delivers steady force for larger, harder or thick-wall pipe.
Two-Step Feed & Finish
A fast approach plus an adjustable finishing feed sets the chamfer depth and surface, so the end is smooth and repeatable on every part.
Selection Guide
How To Choose Your Chamfering Machine
Start from your pipe and your finish, then let our engineers confirm the model and tooling.
- By Pipe Size
Up to roughly Φ50 mm choose the 50, up to Φ80 mm the 80, and for larger or heavier pipe the hydraulic 180.
- By Wall & Material
Thin-wall steel, stainless, aluminum, bronze and plastic run on the pneumatic models. Thick-wall or harder pipe suits the hydraulic model.
- By The End You Need
Just a weld-prep chamfer and deburr? A chamfering machine is enough. Need expanding, reducing or flaring too? Add a tube end forming machine.
- By Line & Output
Many buyers run chamfering next to cutting and bending as one line. See tube bending & fabrication for the full flow.
Materials
Which Pipe Materials It Chamfers
Telhoo matches clamp jaws and tool heads to your pipe, so the chamfer stays clean whether you run steel, stainless or soft non-ferrous pipe.
01
You runSteel & stainless pipe
Telhoo fits
Hardened tool heads for clean weld-prep chamfers on carbon and stainless steel pipe.
02
You runAluminum, bronze & non-ferrous
Telhoo fits
Sharp, low-friction tooling that deburrs soft non-ferrous pipe without tearing the surface.
03
You runPlastic & thin-wall pipe
Telhoo fits
Gentle clamping and light finishing feed for plastic and thin-wall tube ends.
Tell us your pipe material and diameter and we supply the matching chamfering tooling with the machine.
Applications
What Pipe Chamfering Machines Are Used For
Telhoo chamfering and end machines deburr and shape tube ends in steel, stainless steel, aluminum, bronze and plastic for these industries worldwide.
Chamfered Pipe EndsPipe end samples chamfered, deburred and prepared for welding on the pneumatic and hydraulic machines.
Automotive Exhaust & Frames
Muffler and exhaust pipe, seat frames and chassis tube in round and profile sections.
HVAC & Refrigeration
Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.
Furniture & Fitness Equipment
Chair and table frames, gym racks and equipment tube in round and profile sections.
Shipbuilding & Marine
Thick-wall carbon steel pipe for marine, offshore and structural fabrication.
Boiler & Heat Exchanger
Serpentine and coil tube for boilers, heat exchangers and power equipment.
Construction & Handrail
Stair rails, guardrails and architectural tube in stainless and mild steel.
How We Deliver
From Inquiry To Installation
1
Requirement & Pipe Analysis
We review your pipe size, wall thickness, material and the end finish you need.
2
Model & Tooling Proposal
We confirm the model and match the chamfering tooling.
3
Manufacturing & Assembly
Your machine is built and assembled in our 30,000 m² factory.
4
Sample Forming & Test
We chamfer your sample parts and inspect them before shipment, FAT on request.
5
Export Packing & Shipping
Heavy-duty seaworthy packing, full documents and door-to-door logistics.
6
Install, Train & Support
Overseas installation, operator training and long-term spare parts.
How Your Machine Is Shipped
01Crating & Bracing
Each machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.
02Iron-Frame Packing
Heavy machines get an iron-frame base and sealed case, rated for long ocean freight.
03Container Loading
We load 20ft, 40ft and open-top containers in our own yard and send photos before departure.
04Worldwide Shipping
Machines leave Zhangjiagang by sea to buyers in 65+ countries, with complete export paperwork.
Why Telhoo
Built And Supported By The Same Factory
We design and build the machine in Zhangjiagang and handle the tooling and after-sales ourselves.
- In-house R&D, machining and assembly
- CE and ISO9001 certified
- Non-standard and OEM machines built to your line
Telhoo By The Numbers Zhangjiagang, China
Experience
35+
Years manufacturing pipe processing machinery
Facility
30,000 m²
Modern production plant with in-house R&D
Export
65+
Countries with Telhoo machines
Response
24 h
Usual reply time for a quotation
Request A Quote
Tell Us What You Need To Make
Send your tube or pipe specs and an engineer will reply with a machine or process and a quotation, usually within one working day.
- 1Send Your Requirements
Share tube size, wall thickness, material, bend radius and quantity.
- 2Engineering Review
We check feasibility and tooling and choose the machine or process.
- 3Quotation In 24h
You receive a detailed quotation, usually within one working day.
Chamfering FAQ
Pipe Chamfering Machine Questions
Pneumatic models (50, 80) are compact and fast for lighter pipe and higher-speed work. The hydraulic model (180) delivers more force for larger or thicker pipe. All use a two-step feed for a clean finishing cut.
Steel, stainless steel, aluminum, bronze, other non-ferrous metals and even plastic pipe. Tell us your pipe material and diameter and we will confirm the right model and tooling.
Yes. Chamfering and beveling are the same process at different depths. A chamfer is a light 45° edge break, while a weld bevel is a deeper angled cut (30°, 37.5° and similar) that opens the joint for a full-penetration weld. Fit the matching bevel tool head and the machine runs as a pipe beveling machine. Tell us your bevel angle and wall thickness and we will confirm the tooling.
Chamfered, deburred ends improve welding quality and make assembly safer. Many customers run a chamfering machine alongside cutting, bending and end forming for a complete pipe processing line.
It is the guide pipe capacity in millimetres. The 50 covers pipe to Φ50 mm, the 80 to Φ80 mm and the hydraulic 180 takes the range above them. Match the number to the largest pipe you chamfer, then check the smallest as well so one machine covers your whole range.
The price depends on the drive, pneumatic 50 and 80 or hydraulic 180, and on the tooling for your pipe. Send your pipe size, wall thickness and material and we reply with a model and a price.
Yes. Send a sample length and the end finish you need and we chamfer it and inspect it before shipment. A factory acceptance test is available on request.
Custom tooling available
GET A FREE QUOTEGet A Quote For A Pipe Chamfering Machine
Send your pipe material, diameter and wall thickness, and our engineers will reply with a model and tooling.
