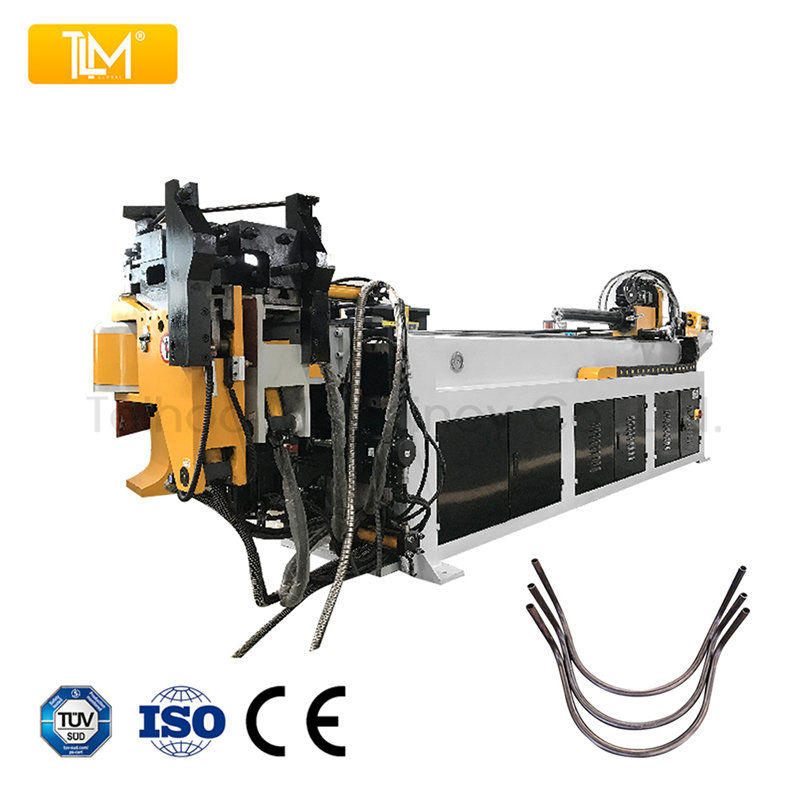

CNC Automatic Pipe Bending Machine

Pipe Bending Machine 50CNC

The only bender in the Telhoo range that bends left and right. Five servo axes and an English touch screen let one setup produce mirrored parts without re-fixturing, which matters on symmetrical frames and handlebar work. Capacity Φ50.8 × 3 mm on a 3000 mm mandrel.

Max bending
Φ50.8X3 mm
Mandrel length
3000 mm
Bending speed
30-100 °/s
Feeding speed
25-900 mm/s
Rotating speed
30-200 °/s
Bending precision
±0.1°
Feeding precision
±0.1 mm
Rotating precision
±0.1°
Max bending degree
190°
Pipe material
mild steel, stainless steel, copper, aluminum ...
  • CE, ISO9001, UL & EAC marked
  • Non-standard machine customizable
  • Overseas installation & training
Download Catalogue
Overview

Product Details

Overview

The 50CNC pipe bending machine is a five-axis CNC pipe bender for tube up to Φ50.8 × 3 mm, with servo bend, feed and rotation and hydraulic clamping. Maximum bend radius is 250 mm on a 3000 mm mandrel.

What this model is bought for is left-and-right bending: a part that turns one way then the other is completed without unclamping. Turning a tube over to reach the second direction loses the datum, and on a chassis member or a seat frame that shows up as asymmetry at assembly. With LR tooling and matched bending dies the whole part runs from one program.

Specifications

CNC Fully automatic

SR Single radius
H Hydraulic bending

Max bending
Φ50.8X3 mm
Mandrel length
3000 mm
Bending speed
30-100 °/s
Feeding speed
25-900 mm/s
Rotating speed
30-200 °/s
Bending precision
±0.1°
Feeding precision
±0.1 mm
Rotating precision
±0.1°
Max bending degree
190°
  • Working light
  • Input data of Y, B, C or X, Y, Z
  • Automatic lubrication system
  • Pipe material: mild steel, stainless steel, copper, aluminum …
  • Round / square / rectangle / profile … pipes and bars
  • CE, ISO90001, UL, EAC marked

Optional equipment

DR
Double radius
TR
Triple radius
QR
Quadruple radius
MR
Multi radius
LR
Left and right direction bending
R
Rolling / Pushing
P
Punching
C
Cutting
  • Safty cover
  • Bend 1.0XD radius, or more tight radius
  • Auto mandrel lubrication system
  • Fan / Water / Oil cooling system
  • Robot loading and unloading
  • Windows XP controller
  • Industry PC (3D tube showing, function of mirror image and reverted image)
  • 3D bending simulation, can read CAD files
  • Safe blanket / Infrared alarm device

Tooling

Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual

Applications

Where The Pipe Bending Machine 50CNC Goes To Work

From automotive exhaust lines to shipyard structures, Telhoo machines form round, square and profile tube in mild steel, stainless steel, copper and aluminum for repeatable, high-volume production.

Sample bent steel, stainless, copper and aluminum tube parts produced on Telhoo pipe bending machines
Bent tube chair frame produced on a Telhoo pipe bending machine
Real PartsFrom loose bends to finished frames — round, square and profile tube in steel, stainless, copper and aluminum.

Automotive Exhaust & Frames

Muffler and exhaust pipe, seat frames and chassis tube in round and profile sections.

HVAC & Refrigeration

Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.

Furniture & Fitness Equipment

Chair and table frames, gym racks and equipment tube with clean, consistent bends.

Shipbuilding & Marine

Thick-wall carbon steel pipe for marine, offshore and structural fabrication.

Boiler & Heat Exchanger

Serpentine and coil tube for boilers, heat exchangers and power equipment.

Construction & Handrail

Stair rails, guardrails and architectural tube in stainless and mild steel.

How We Deliver

From Inquiry To Installation

1

Requirement & Pipe Analysis

We review your tube size, wall thickness, material, bend radius and target output.

2

Model & Tooling Proposal

We confirm the right model and match bend, clamp, pressure and mandrel dies.

3

Manufacturing & Assembly

Your machine is built and assembled in our 30,000 m² factory.

4

Sample Bending & Test

We bend your sample parts and inspect them before shipment, FAT on request.

5

Export Packing & Shipping

Heavy-duty seaworthy packing, full documents and door-to-door logistics.

6

Install, Train & Support

Overseas installation, operator training and long-term spare parts.

Why Telhoo

A Pipe Bending Partner, Not Just A Machine

Jiangsu Telhoo has manufactured CNC and NC pipe bending machines for over 35 years and exports to buyers in more than 65 countries. Every machine is backed by in-house R&D, full tooling support and after-sales service.

  • In-house R&D, machining and assembly
  • CE, ISO9001, UL and EAC certified
  • Non-standard and OEM machines built to your line
Telhoo By The NumbersZhangjiagang, China
Experience
35+

Years manufacturing pipe processing machinery

Facility
30,000 m²

Modern production plant with in-house R&D

Export
65+

Countries served across five continents

Response
24 h

Typical reply time on your quotation

Certifications

Quality You Can Verify

Every Telhoo machine is built under an ISO 9001 quality system and CE certified for the European market, with UL and EAC compliance available. Full certificates and test reports are provided with your order.

  • ISO 9001:2015
  • CE Marked
  • UL
  • EAC
Request A Quote

Get A Tailored Quote For The Pipe Bending Machine 50CNC

Send us your pipe diameter, wall thickness, material and bend radius. Our engineers confirm the right model, tooling and options, and reply with a detailed quotation.

  • Reply within 24 hours by a real engineer
  • Free tooling and configuration advice
  • Your enquiry is kept strictly confidential
Tell Us Your Requirement

Fields marked * are required.

Export & Delivery

From Our Factory To Your Floor

Your machine is tested, crated and loaded in our own Zhangjiagang yard, then shipped by sea with full export documents — so it arrives ready to install.

Telhoo pipe bending machine being crated and braced for export01

Crating & Bracing

The machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.

Iron-frame export packaging for a Telhoo CNC pipe bending machine02

Iron-Frame Packing

An iron-frame base and sealed case, rated for long ocean freight.

Container loading of a Telhoo CNC pipe bending machine at the factory03

Container Loading

Loaded into 20ft, 40ft or open-top containers in our own yard, with photos before departure.

Telhoo machines leaving the factory by container truck for worldwide export04

Worldwide Shipping

Shipped by sea to buyers in 65+ countries, with complete export paperwork.

Iron-frame packaging, container loading and export documentation are a standard part of every Telhoo order — supported by our own foreign-trade team.

FAQ

Pipe Bending Machine 50CNC — Common Questions

Φ50.8 × 3 mm carbon steel, on a 1.5 tonne frame with a maximum bend radius of 250 mm and 3000 mm mandrel length. Bend, feed and rotation all repeat to ±0.1.

Yes, with left-and-right tooling fitted. Parts that need bends in opposite directions — chassis members, seat frames, chair legs — otherwise have to be turned over and reset, which loses the datum. LR tooling keeps one setup.

A stacked die set holds two or more radii on one bend die, so a part with two different centre-line radii is made in one setup instead of two. You need it when a single part mixes radii; if all your bends share a radius, single-stack tooling is simpler and cheaper.

Recalling a stored program is immediate. What takes time is the physical tooling change if the new part uses a different die set — typically well under an hour on this size of machine, and nothing at all if the parts share tooling.

The bending, clamping and mandrel functions are hydraulic and electric on this model. Air is used for auxiliary functions where fitted. Full utility requirements are confirmed with the order so the site is ready at delivery.
