Overview

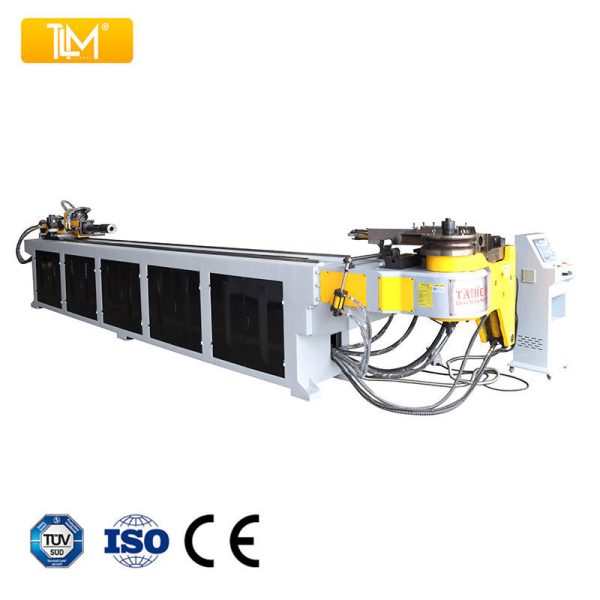

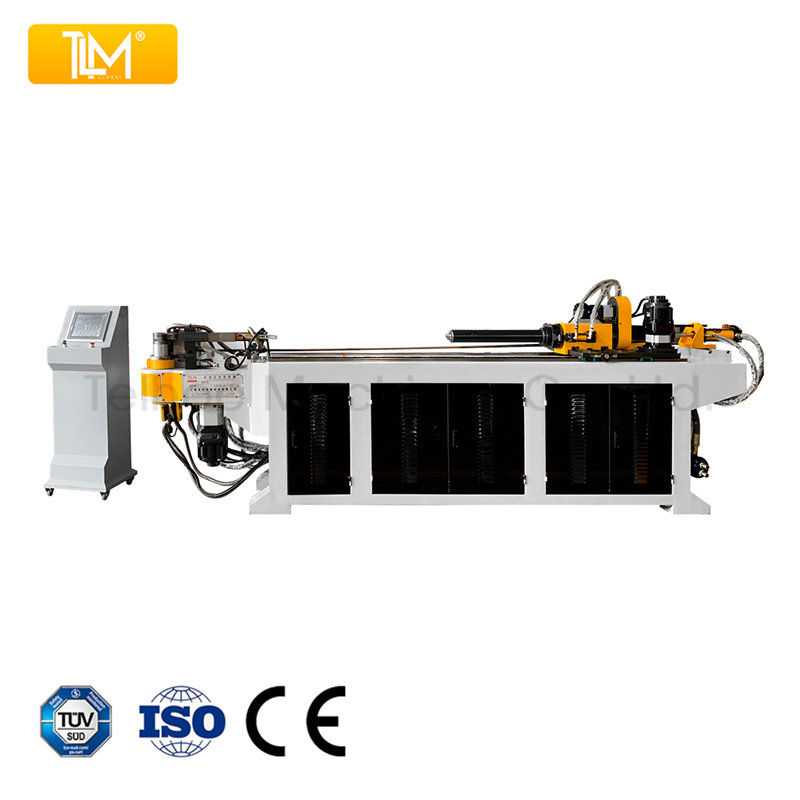

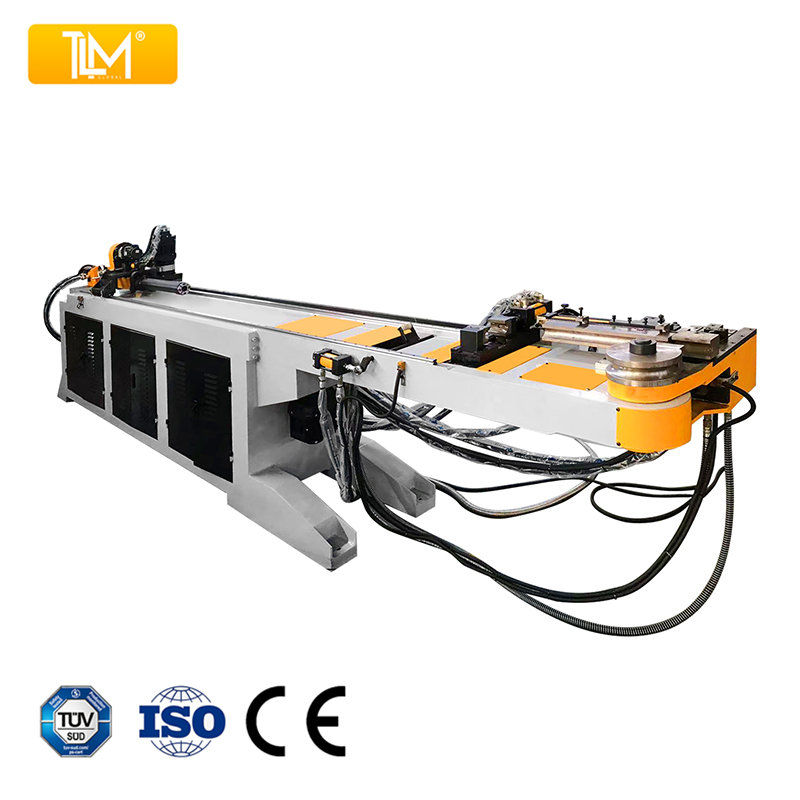

The 38CNC pipe bending machine is the entry model in Telhoo’s CNC pipe bender range and the fastest one in it — bending at up to 100°/s, feeding at 900 mm/s and rotating at 200°/s on tube up to Φ38.1 × 2 mm. Small sections move quickly, and the whole sequence is stored and replayed rather than judged by an operator.
Bending is electric servo; clamping and the moving mandrel are hydraulic. Three-stack tooling means three sets of bending dies sit on one machine, so a part that mixes radii is finished in one setup instead of two. Left-and-right bending and a rolling function are available on the same frame.
Specifications
CNC Fully automatic
TR Three stacks
R Rolling function
LR Left and right two direction bending
- Max bending
- Φ38.1X2 mm
- Mandrel length
- 3000 mm
- Bending speed
- 30-100 °/s
- Feeding speed
- 25-900 mm/s
- Rotating speed
- 30-200 °/s
- Bending precision
- ±0.1°
- Feeding precision
- ±0.1 mm
- Rotating precision
- ±0.1°
- Max bending degree
- 190°
- Working light
- Input data of Y, B, C or X, Y, Z
- Automatic lubrication system
- Pipe material: mild steel, stainless steel, copper, aluminum …
- Round / square / rectangle / profile … pipes and bars
- CE, ISO90001, UL, EAC marked
Optional equipment
Safty cover
Auto mandrel lubrication system
Air conditioner cooling system
Robot loading and unloading
3D bending simulation, can read CAD files
Safe blanket / Infrared alarm device
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: Aluminum copper alloy steel
Aluminum pipe: bend die, and clamp die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual
