Overview

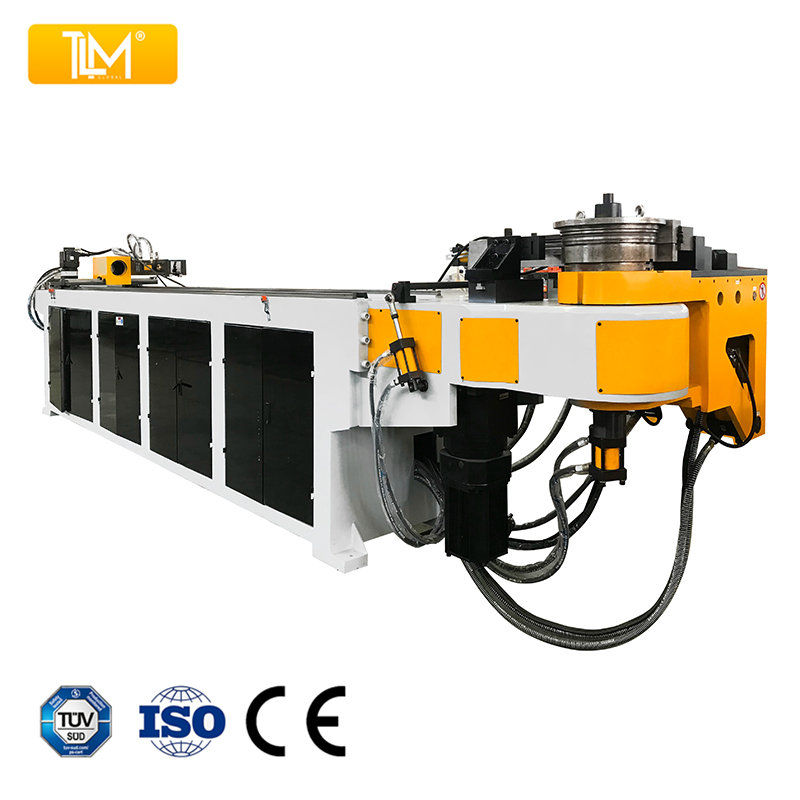

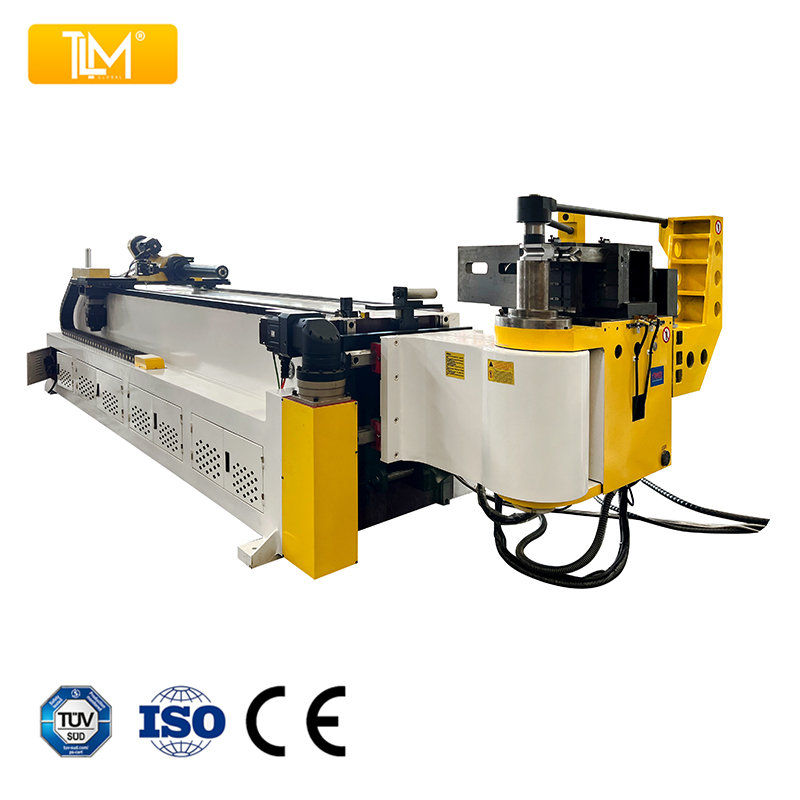

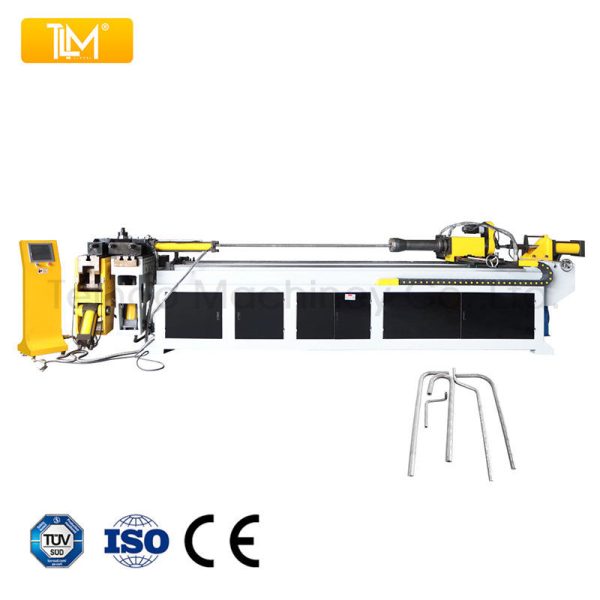

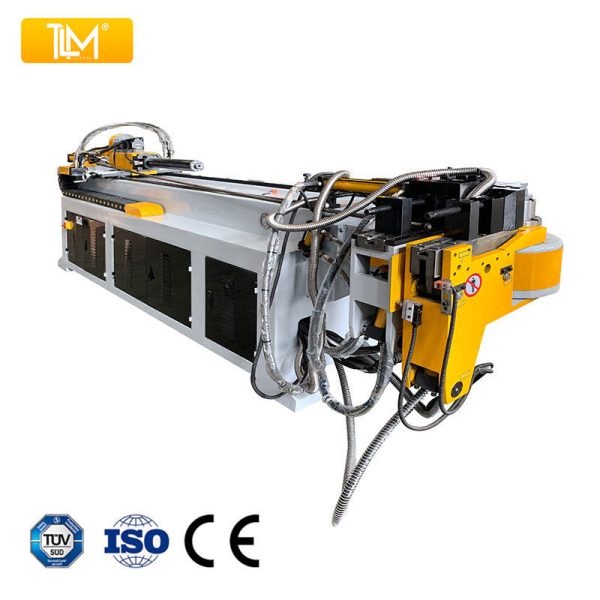

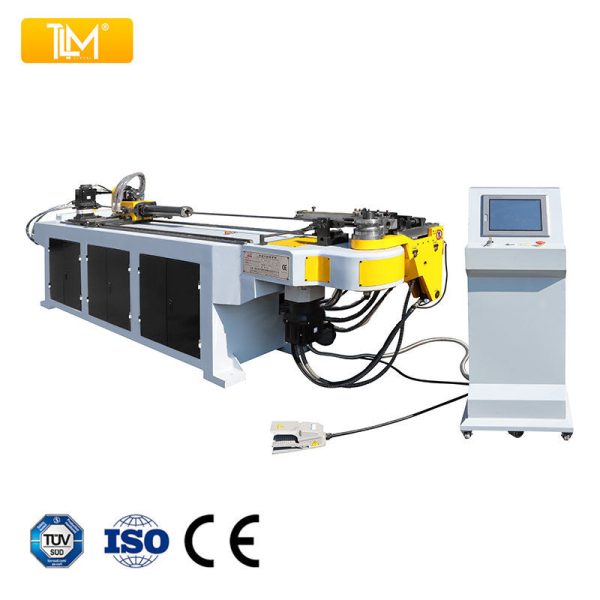

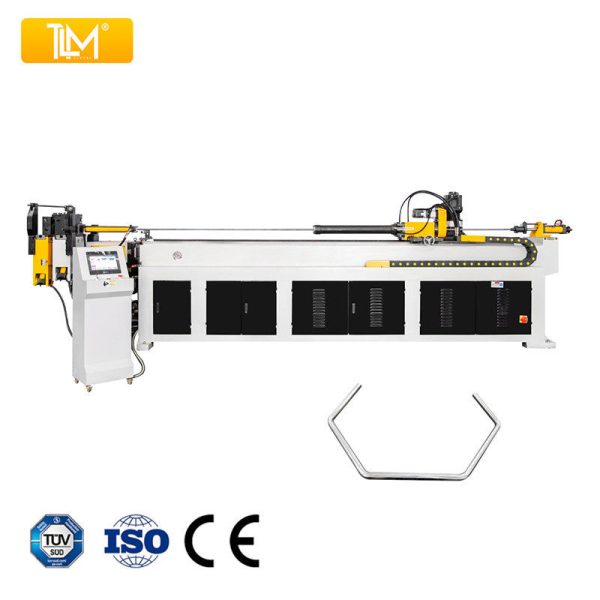

The 75CNC pipe bending machine is a CNC pipe bender for tube up to Φ76.2 × 3 mm — three inches — on a 3800 mm mandrel, with a 300 mm maximum bend radius and a 3.2 tonne frame.
Bend speed drops to 35°/s here against 100°/s on the smallest model. That is deliberate: larger sections need controlled metal flow, and pushing them faster costs springback consistency. This is the common size for commercial vehicle and machinery exhaust, where a mandrel bender and matched wiper dies are what keep thin-wall stainless from wrinkling on the inside radius.
Specifications
CNC Fully automatic
SR Three stacks
R Rolling function
LR Left and right two direction bending
- Max bending
- Φ76.2X3 mm
- Mandrel length
- 3800 mm
- Bending speed
- 20-35 °/s
- Feeding speed
- 200-700 mm/s
- Rotating speed
- 25-180 °/s
- Bending precision
- ±0.1°
- Feeding precision
- ±0.1 mm
- Rotating precision
- ±0.1°
- Max bending degree
- 190°
- Working light
- Input data of Y, B, C or X, Y, Z
- Automatic lubrication system
- Pipe material: mild steel, stainless steel, copper, aluminum …
- Round / square / rectangle / profile … pipes and bars
- CE, ISO90001, UL, EAC marked
Optional equipment
- DR
- Double radius
- TR
- Triple radius
- QR
- Quadruple radius
- MR
- Multi radius
- LR
- Left and right direction bending
- R
- Rolling / Pushing
- P
- Punching
- C
- Cutting
- Safty cover
- Bend 1.0XD radius, or more tight radius
- Auto mandrel lubrication system
- Fan / Water / Oil cooling system
- Robot loading and unloading
- Windows XP controller
- Industry PC (3D tube showing, function of mirror image and reverted image)
- 3D bending simulation, can read CAD files
- Safe blanket / Infrared alarm device
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual
