Overview

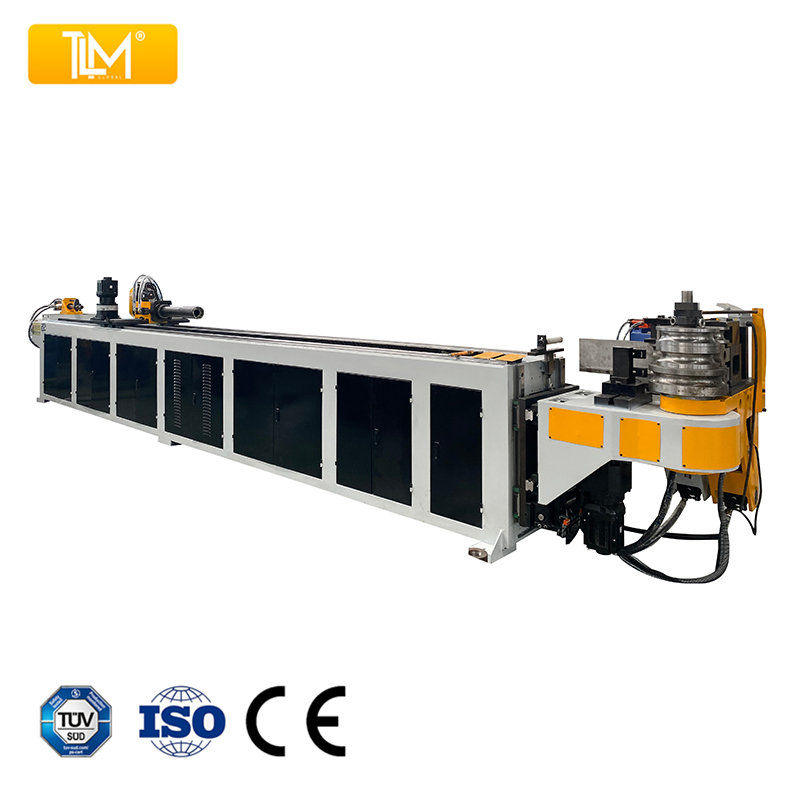

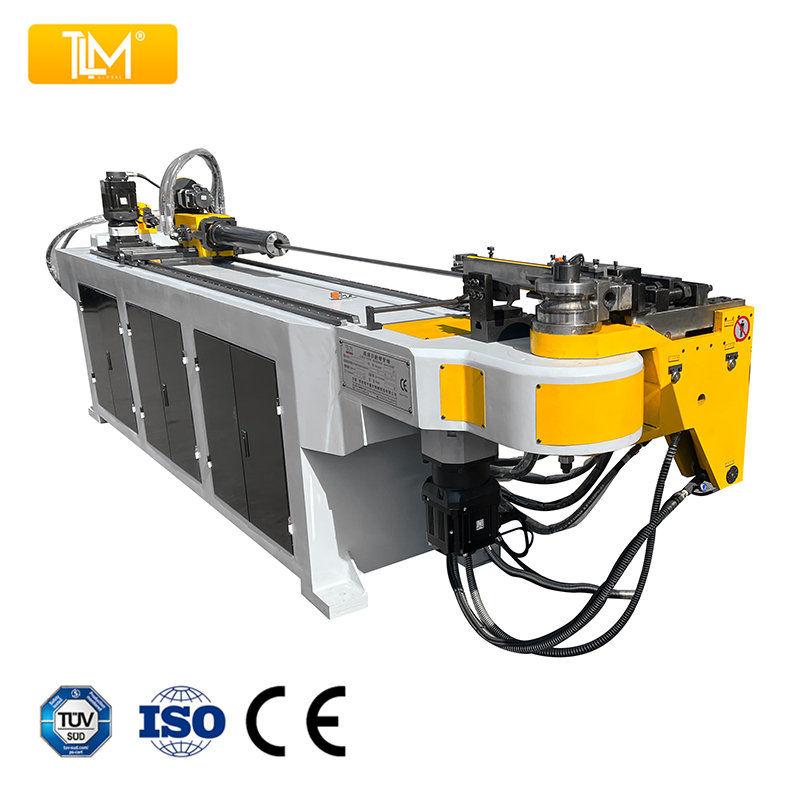

The 63CNC pipe bending machine is a CNC pipe bender covering tube up to Φ63.5 × 2.5 mm — two and a half inches — on a 3000 mm mandrel with a 250 mm maximum bend radius. Servo bend, feed and rotation, hydraulic clamping and a hydraulic moving mandrel.
This is the size where copper and thin-wall stainless start to appear in the job mix, and both need the mandrel and wiper dies fitted correctly rather than approximately. Three-stack tooling carries three radii at once, so multi-radius parts stay in one setup.
Specifications
CNC Fully automatic
SR Three stacks
R Rolling function
LR Left and right two direction bending
- Max bending
- Φ63.5X2.5 mm
- Mandrel length
- 3000 mm
- Bending speed
- 30-100 °/s
- Feeding speed
- 25-900 mm/s
- Rotating speed
- 30-200 °/s
- Bending precision
- ±0.1°
- Feeding precision
- ±0.1 mm
- Rotating precision
- ±0.1°
- Max bending degree
- 190°
- Working light
- Input data of Y, B, C or X, Y, Z
- Automatic lubrication system
- Pipe material: mild steel, stainless steel, copper, aluminum …
- Round / square / rectangle / profile … pipes and bars
- CE, ISO90001, UL, EAC marked
Optional equipment
- DR
- Double radius
- TR
- Triple radius
- QR
- Quadruple radius
- MR
- Multi radius
- LR
- Left and right direction bending
- R
- Rolling / Pushing
- P
- Punching
- C
- Cutting
- Safty cover
- Bend 1.0XD radius, or more tight radius
- Auto mandrel lubrication system
- Fan / Water / Oil cooling system
- Robot loading and unloading
- Windows XP controller
- Industry PC (3D tube showing, function of mirror image and reverted image)
- 3D bending simulation, can read CAD files
- Safe blanket / Infrared alarm device
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual
