Overview

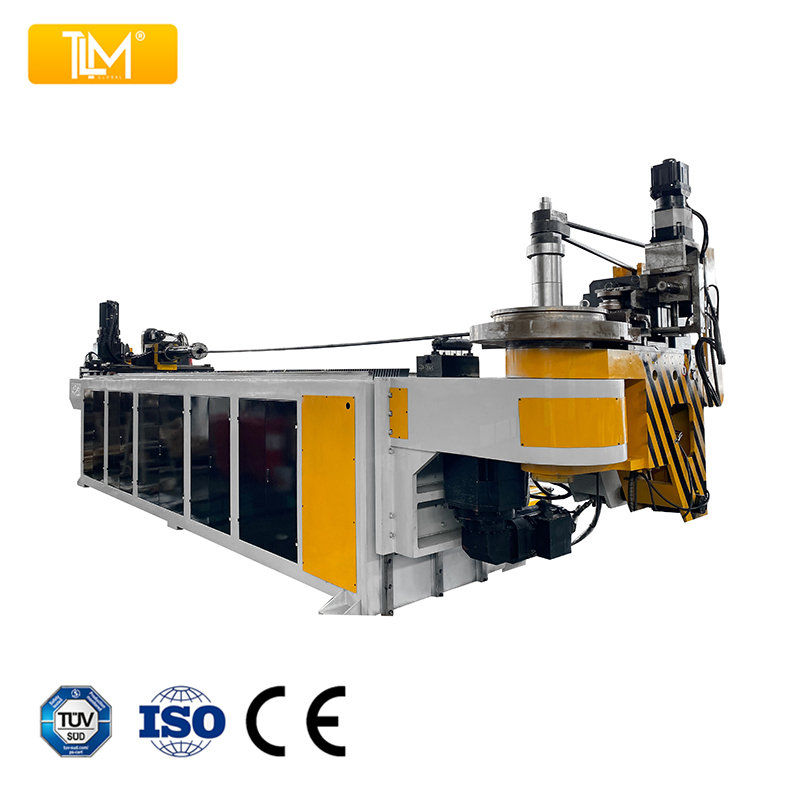

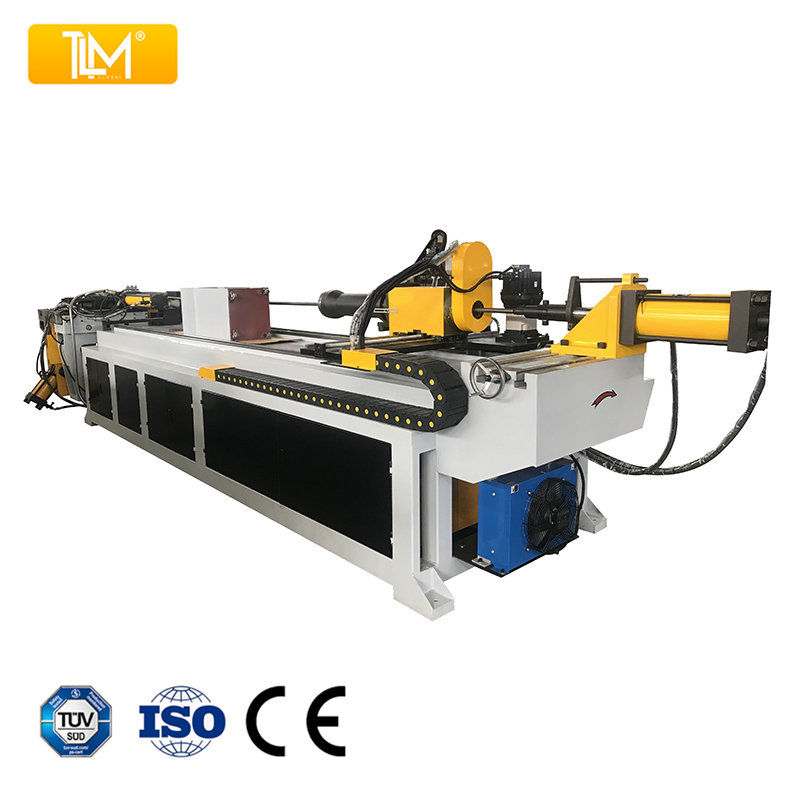

The 130CNC pipe bending machine is a CNC pipe bender handling Φ130 × 8 mm pipe on a 5000 mm mandrel, 500 mm maximum bend radius, 7 tonne frame, with a 22 kW hydraulic unit driving clamping and the moving mandrel.
An 8 mm wall is easier in one way and harder in another. It resists wrinkling and ovality far better than thin wall, so the failure mode is no longer buckling — it is simply having enough machine. That is why heavy-wall benders are built massive rather than clever, and why the bending dies for this size are a different order of tooling.
Specifications
CNC Fully automatic
SR Three stacks
E Electric bend
R Rolling function
LR Left and right two direction bending
- Max bending
- Φ130X8 mm
- Mandrel length
- 5000 mm
- Bending speed
- 20-30 °/s
- Feeding speed
- 150-600 mm/s
- Rotating speed
- 25-120 °/s
- Bending precision
- ±0.1°
- Feeding precision
- ±0.1 mm
- Rotating precision
- ±0.1°
- Max bending degree
- 190°
- Working light
- Input data of Y, B, C or X, Y, Z
- Automatic lubrication system
- Pipe material: mild steel, stainless steel, copper, aluminum …
- Round / square / rectangle / profile … pipes and bars
- CE, ISO90001, UL, EAC marked
Optional equipment
- DR
- Double radius
- TR
- Triple radius
- QR
- Quadruple radius
- MR
- Multi radius
- LR
- Left and right direction bending
- R
- Rolling / Pushing
- P
- Punching
- C
- Cutting
- Safty cover
- Bend 1.0XD radius, or more tight radius
- Auto mandrel lubrication system
- Fan / Water / Oil cooling system
- Robot loading and unloading
- Windows XP controller
- Industry PC (3D tube showing, function of mirror image and reverted image)
- 3D bending simulation, can read CAD files
- Connect three coordinates measuring instrument
- Safe blanket / Infrared alarm device
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard：DVD，working indicator, one set of seal ring, tool box.
