Overview

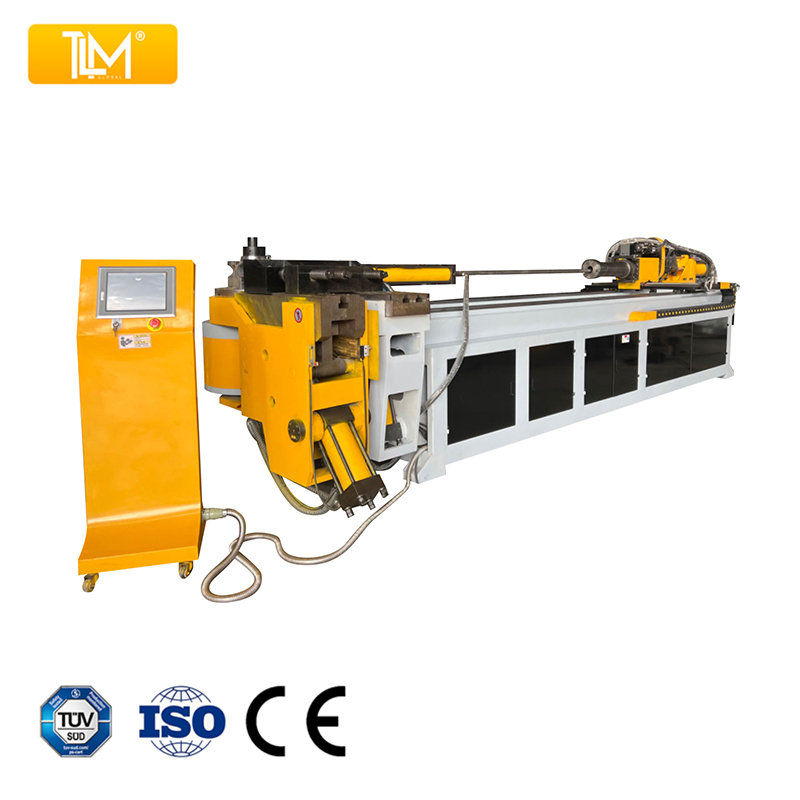

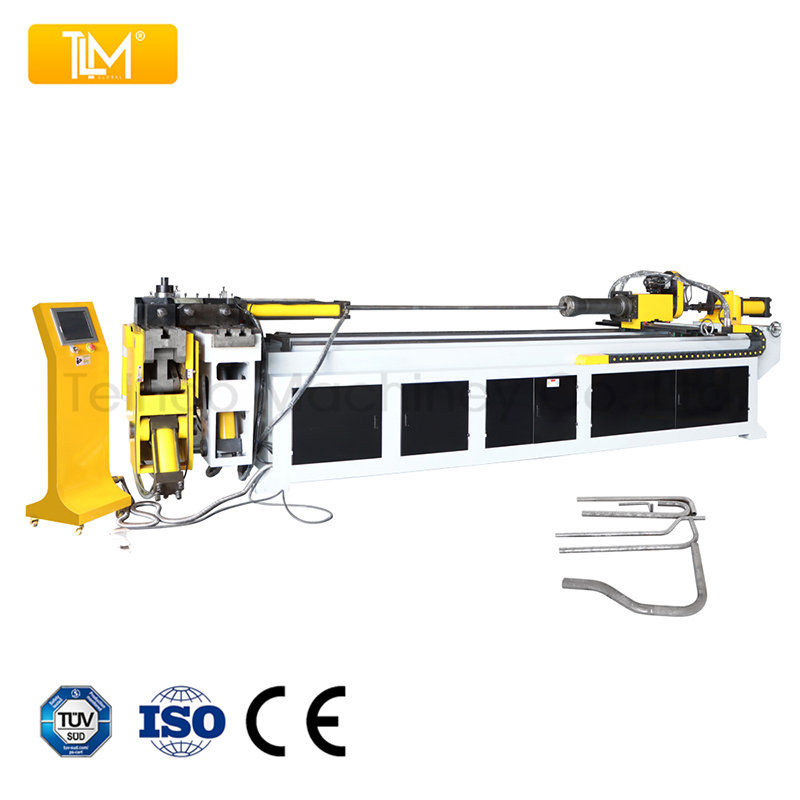

The 115CNC pipe bending machine is a CNC pipe bender rated Φ115 × 6 mm on a 5000 mm mandrel, with a 500 mm maximum bend radius and a 6 tonne frame. Bending is electric servo; clamping and the moving mandrel run off a 22 kW hydraulic power unit.
Crossing into 6 mm wall changes what the machine has to be. Force, mass and speed all shift together: bend speed comes down to 30°/s and the frame roughly doubles against the 89CNC, because on heavy wall it is the frame that holds precision, not the control. Typical work is shipbuilding, boiler and heavy vehicle pipework.
Specifications
CNC Fully automatic
SR Three stacks
R Rolling function
LR Left and right two direction bending
- Max bending
- Φ115X6 mm
- Mandrel length
- 5000 mm
- Bending speed
- 20-30 °/s
- Feeding speed
- 150-600 mm/s
- Rotating speed
- 25-120 °/s
- Bending precision
- ±0.1°
- Feeding precision
- ±0.1 mm
- Rotating precision
- ±0.1°
- Max bending degree
- 190°
- Working light
- Input data of Y, B, C or X, Y, Z
- Automatic lubrication system
- Pipe material: mild steel, stainless steel, copper, aluminum …
- Round / square / rectangle / profile … pipes and bars
- CE, ISO90001, UL, EAC marked
Optional equipment
- DR
- Double radius
- TR
- Triple radius
- QR
- Quadruple radius
- MR
- Multi radius
- LR
- Left and right direction bending
- R
- Rolling / Pushing
- P
- Punching
- C
- Cutting
- Safty cover
- Bend 1.0XD radius, or more tight radius
- Auto mandrel lubrication system
- Fan / Water / Oil cooling system
- Robot loading and unloading
- Windows XP controller
- Industry PC (3D tube showing, function of mirror image and reverted image)
- 3D bending simulation, can read CAD files
- Safe blanket / Infrared alarm device
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard：Sealing ring, sensors, spanner, operation manual
