NC Semi-Automatic Tube Bender

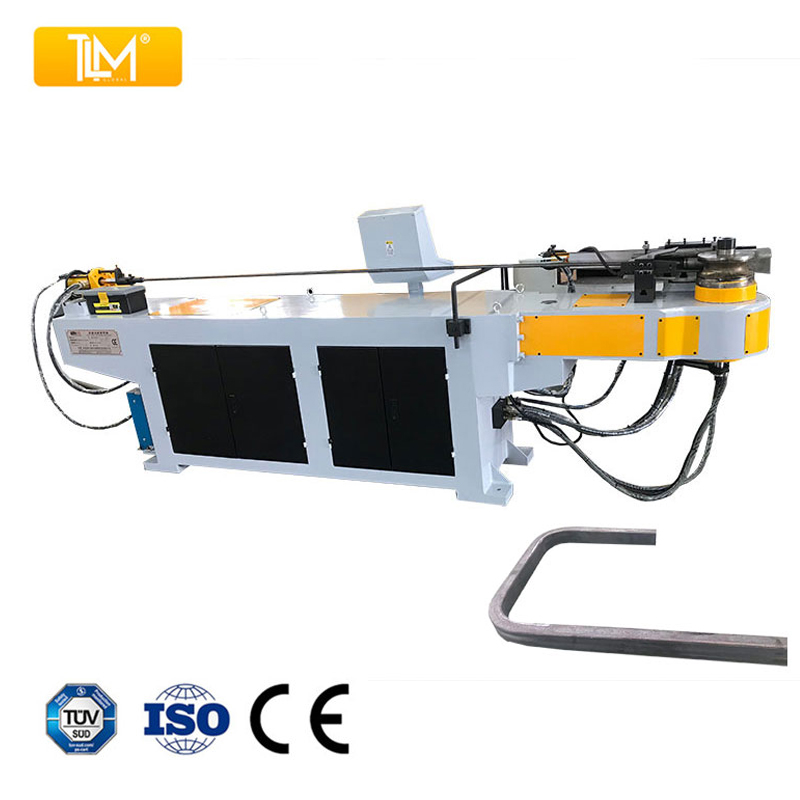

63NC NC Semi-Automatic Tube Bender

NC semi-automatic tube bender covering tube up to Φ63.5 × 2.5 mm at 35°/s, with a 2950 mm mandrel for longer parts. A practical mid-range size for exhaust work, roll bars and machine guards where CNC feeding is not needed. Hydraulic bending, ±0.1° repeatability, 185° maximum bend.

Max bending
Φ63.5X2.5 mm
Mandrel length
2950 mm
Bending speed
35 °/s
Bending precision
±0.1°
Max bending degree
185°
Pipe material
mild steel, stainless steel, copper, aluminum ...
  • CE, ISO9001, UL & EAC marked
  • Non-standard machine customizable
  • Overseas installation & training
Download Catalogue
Overview

Product Details

Overview

The 63NC tube bender is an NC hydraulic machine covering Φ63.5 × 2.5 mm in mild steel and Φ38 × 2.0 mm in stainless, at 35°/s on a 2950 mm mandrel.

The gap between those two ratings is normal and worth understanding before you specify: stainless work-hardens and needs roughly twice the bending force of mild steel at the same section. Copper and aluminium go the other way — force is not the constraint, marking is, so clamp pressure and the mandrel finish matter more than raw tonnage.

Specifications

NC Semi automatic

B Hydraulic auxiliary driving

Max bending
Φ63.5X2.5 mm
Mandrel length
2950 mm
Bending speed
35 °/s
Bending precision
±0.1°
Max bending degree
185°

Working light
Water cooling
Pipe material: mild steel, stainless steel, copper, aluminum …
Round / square / rectangle / profile … pipes and bars
CE, ISO90001, EAC, UL marked

Optional equipment

MP Auto rotating pipe

L
Left direction bending
P
Punching
C
Cutting

Safty cover
Stopper (length measurement)
Fan / Water / Oil cooling system
Bend 1.0XD radius, or more tight radius
Tie rod bars (support arm)

Tooling

Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual

Applications

Where The 63NC NC Semi-Automatic Tube Bender Goes To Work

From automotive exhaust lines to shipyard structures, Telhoo machines form round, square and profile tube in mild steel, stainless steel, copper and aluminum for repeatable, high-volume production.

Sample bent steel, stainless, copper and aluminum tube parts produced on Telhoo pipe bending machines
Bent tube chair frame produced on a Telhoo pipe bending machine
Real PartsFrom loose bends to finished frames — round, square and profile tube in steel, stainless, copper and aluminum.

Automotive Exhaust & Frames

Muffler and exhaust pipe, seat frames and chassis tube in round and profile sections.

HVAC & Refrigeration

Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.

Furniture & Fitness Equipment

Chair and table frames, gym racks and equipment tube with clean, consistent bends.

Shipbuilding & Marine

Thick-wall carbon steel pipe for marine, offshore and structural fabrication.

Boiler & Heat Exchanger

Serpentine and coil tube for boilers, heat exchangers and power equipment.

Construction & Handrail

Stair rails, guardrails and architectural tube in stainless and mild steel.

How We Deliver

From Inquiry To Installation

1

Requirement & Pipe Analysis

We review your tube size, wall thickness, material, bend radius and target output.

2

Model & Tooling Proposal

We confirm the right model and match bend, clamp, pressure and mandrel dies.

3

Manufacturing & Assembly

Your machine is built and assembled in our 30,000 m² factory.

4

Sample Bending & Test

We bend your sample parts and inspect them before shipment, FAT on request.

5

Export Packing & Shipping

Heavy-duty seaworthy packing, full documents and door-to-door logistics.

6

Install, Train & Support

Overseas installation, operator training and long-term spare parts.

Why Telhoo

A Pipe Bending Partner, Not Just A Machine

Jiangsu Telhoo has manufactured CNC and NC pipe bending machines for over 35 years and exports to buyers in more than 65 countries. Every machine is backed by in-house R&D, full tooling support and after-sales service.

  • In-house R&D, machining and assembly
  • CE, ISO9001, UL and EAC certified
  • Non-standard and OEM machines built to your line
Telhoo By The NumbersZhangjiagang, China
Experience
35+

Years manufacturing pipe processing machinery

Facility
30,000 m²

Modern production plant with in-house R&D

Export
65+

Countries served across five continents

Response
24 h

Typical reply time on your quotation

Certifications

Quality You Can Verify

Every Telhoo machine is built under an ISO 9001 quality system and CE certified for the European market, with UL and EAC compliance available. Full certificates and test reports are provided with your order.

  • ISO 9001:2015
  • CE Marked
  • UL
  • EAC
Request A Quote

Get A Tailored Quote For The 63NC NC Semi-Automatic Tube Bender

Send us your pipe diameter, wall thickness, material and bend radius. Our engineers confirm the right model, tooling and options, and reply with a detailed quotation.

  • Reply within 24 hours by a real engineer
  • Free tooling and configuration advice
  • Your enquiry is kept strictly confidential
Tell Us Your Requirement

Fields marked * are required.

Export & Delivery

From Our Factory To Your Floor

Your machine is tested, crated and loaded in our own Zhangjiagang yard, then shipped by sea with full export documents — so it arrives ready to install.

Telhoo pipe bending machine being crated and braced for export01

Crating & Bracing

The machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.

Iron-frame export packaging for a Telhoo CNC pipe bending machine02

Iron-Frame Packing

An iron-frame base and sealed case, rated for long ocean freight.

Container loading of a Telhoo CNC pipe bending machine at the factory03

Container Loading

Loaded into 20ft, 40ft or open-top containers in our own yard, with photos before departure.

Telhoo machines leaving the factory by container truck for worldwide export04

Worldwide Shipping

Shipped by sea to buyers in 65+ countries, with complete export paperwork.

Iron-frame packaging, container loading and export documentation are a standard part of every Telhoo order — supported by our own foreign-trade team.

FAQ

63NC NC Semi-Automatic Tube Bender — Common Questions

Φ63.5 × 2.5 mm in carbon steel — Φ63.5 mm is two and a half inches — and Φ38 × 2.0 mm in stainless. The gap between the two figures is normal: stainless needs roughly twice the bending force of mild steel at the same section.

Because larger pipe in service normally carries a heavier wall. The NC range steps from 2.0 mm on the 38NC and 50NC to 2.5 mm here, 3.0 mm on the 75NC and 89NC, and up to 20 mm on the 219NC. Rating a big machine at a thin wall would be meaningless.

Yes. Both are softer than mild steel so force is not the constraint; the risk is marking and ovality. Correct clamp pressure and a well-matched mandrel matter more on soft material than on steel.

Maximum mandrel length is 2950 mm, and that is what governs how far into a tube you can place a mandrel-supported bend. Tube longer than that can still be bent where the bend sits within reach of the mandrel.

Bend angle repeats to ±0.1°. What varies more across a batch is feed length and rotation, since the operator sets those by hand — which is exactly the difference a CNC machine removes.
