Automatic Pipe Cutting Machine

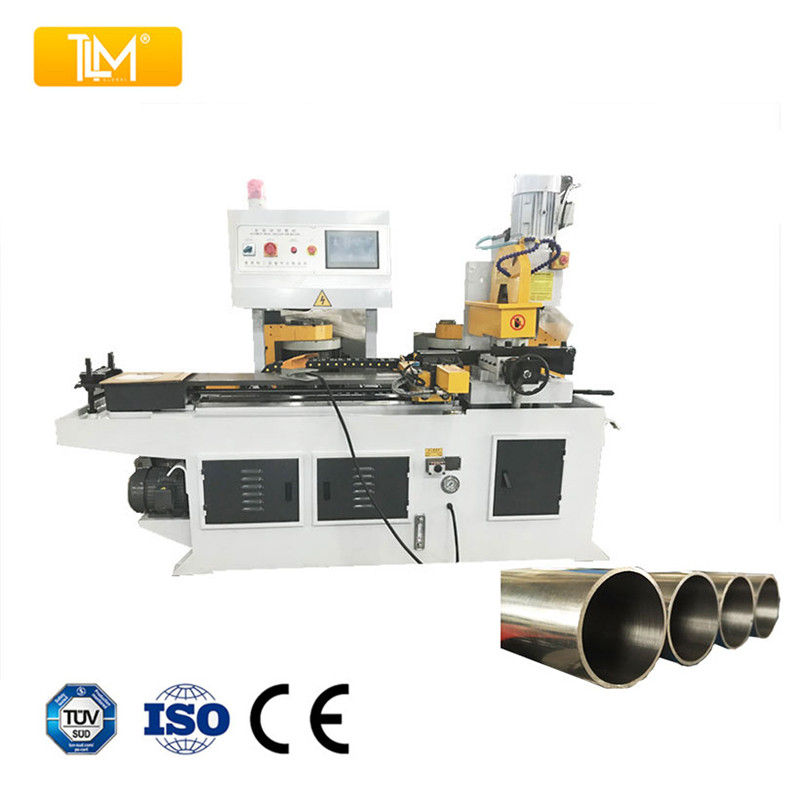

350CNC Automatic Pipe Cutting Machine

Automatic CNC pipe cutting machine with a Φ350 mm saw blade, cutting round pipe up to Φ100 mm. Feeding, clamping and cutting all run automatically with CNC length control, so a batch comes off at one length instead of drifting. Standard 1000 mm feed length, customisable; 4.5 / 5.5 kW motor.

Max
Φ350 mm saw blade
Feeding length
1000mm (standard)
Motor
4.5 / 5.5 kw
Pipe material
carbon steel, stainless steel, metal pipe
Max capacity
100mm round pipe
  • CE, ISO9001, UL & EAC marked
  • Non-standard machine customizable
  • Overseas installation & training
Download Catalogue
Overview

Product Details

Overview

The 350CNC pipe cutting machine is an automatic CNC circular saw machine. The pipe is fed to a programmed length, clamped hydraulically, cut under coolant and indexed for the next piece — the operator loads a bundle and watches a counter instead of measuring every cut.

A Φ350 mm blade gives a maximum capacity of Φ100 mm round pipe. Standard feed length is 1000 mm and can be built longer.

Where programmed length pays for itself

A manual saw drifts. Not much on any single cut, but across a batch of several hundred the variation accumulates, and the parts at the end of the run are no longer the parts you set up at the start. It surfaces at assembly, not at the saw. Programmed feed removes that drift: piece 400 is the same length as piece 1, which is what lets downstream bending and welding fixtures work without adjustment.

Blade speed and section

The spindle runs at 60 / 120 RPM. The two-speed arrangement matters more than it looks: blade surface speed has to come down for stainless and go up for mild steel, and running the wrong one is the fastest way to lose a blade. Cuts carbon steel, stainless and other metal pipe in round, square, rectangular and profile section.

Specifications

Auto feeding pipe, auto clamping, auto cutting

Max.
Φ350 mm saw blade
Feeding length
1000mm (standard)
Motor
4.5 / 5.5 kw

Feeding length can be customized

Pipe material: carbon steel, stainless steel, metal pipe
Round / square / rectangle / profile … pipes and bars
CE, ISO90001, EAC, UL marked
Max capacity: 100mm round pipe

Optional equipment

  • Auto loading
  • Auto head roating
  • Complete safety cover

Tooling

Standard tool: HSS saw blade

Standard: Sealing ring, sensors, spanner, operation manual

Applications

Where The 350CNC Automatic Pipe Cutting Machine Goes To Work

From automotive exhaust lines to shipyard structures, Telhoo machines form round, square and profile tube in mild steel, stainless steel, copper and aluminum for repeatable, high-volume production.

Sample bent steel, stainless, copper and aluminum tube parts produced on Telhoo pipe bending machines
Bent tube chair frame produced on a Telhoo pipe bending machine
Real PartsFrom loose bends to finished frames — round, square and profile tube in steel, stainless, copper and aluminum.

Automotive Exhaust & Frames

Muffler and exhaust pipe, seat frames and chassis tube in round and profile sections.

HVAC & Refrigeration

Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.

Furniture & Fitness Equipment

Chair and table frames, gym racks and equipment tube with clean, consistent bends.

Shipbuilding & Marine

Thick-wall carbon steel pipe for marine, offshore and structural fabrication.

Boiler & Heat Exchanger

Serpentine and coil tube for boilers, heat exchangers and power equipment.

Construction & Handrail

Stair rails, guardrails and architectural tube in stainless and mild steel.

How We Deliver

From Inquiry To Installation

1

Requirement & Pipe Analysis

We review your tube size, wall thickness, material, bend radius and target output.

2

Model & Tooling Proposal

We confirm the right model and match bend, clamp, pressure and mandrel dies.

3

Manufacturing & Assembly

Your machine is built and assembled in our 30,000 m² factory.

4

Sample Bending & Test

We bend your sample parts and inspect them before shipment, FAT on request.

5

Export Packing & Shipping

Heavy-duty seaworthy packing, full documents and door-to-door logistics.

6

Install, Train & Support

Overseas installation, operator training and long-term spare parts.

Why Telhoo

A Pipe Bending Partner, Not Just A Machine

Jiangsu Telhoo has manufactured CNC and NC pipe bending machines for over 35 years and exports to buyers in more than 65 countries. Every machine is backed by in-house R&D, full tooling support and after-sales service.

  • In-house R&D, machining and assembly
  • CE, ISO9001, UL and EAC certified
  • Non-standard and OEM machines built to your line
Telhoo By The NumbersZhangjiagang, China
Experience
35+

Years manufacturing pipe processing machinery

Facility
30,000 m²

Modern production plant with in-house R&D

Export
65+

Countries served across five continents

Response
24 h

Typical reply time on your quotation

Certifications

Quality You Can Verify

Every Telhoo machine is built under an ISO 9001 quality system and CE certified for the European market, with UL and EAC compliance available. Full certificates and test reports are provided with your order.

  • ISO 9001:2015
  • CE Marked
  • UL
  • EAC
Request A Quote

Get A Tailored Quote For The 350CNC Automatic Pipe Cutting Machine

Send us your pipe diameter, wall thickness, material and bend radius. Our engineers confirm the right model, tooling and options, and reply with a detailed quotation.

  • Reply within 24 hours by a real engineer
  • Free tooling and configuration advice
  • Your enquiry is kept strictly confidential
Tell Us Your Requirement

Fields marked * are required.

Export & Delivery

From Our Factory To Your Floor

Your machine is tested, crated and loaded in our own Zhangjiagang yard, then shipped by sea with full export documents — so it arrives ready to install.

Telhoo pipe bending machine being crated and braced for export01

Crating & Bracing

The machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.

Iron-frame export packaging for a Telhoo CNC pipe bending machine02

Iron-Frame Packing

An iron-frame base and sealed case, rated for long ocean freight.

Container loading of a Telhoo CNC pipe bending machine at the factory03

Container Loading

Loaded into 20ft, 40ft or open-top containers in our own yard, with photos before departure.

Telhoo machines leaving the factory by container truck for worldwide export04

Worldwide Shipping

Shipped by sea to buyers in 65+ countries, with complete export paperwork.

Iron-frame packaging, container loading and export documentation are a standard part of every Telhoo order — supported by our own foreign-trade team.

FAQ

350CNC Automatic Pipe Cutting Machine — Common Questions

A Φ350 mm circular saw blade giving a maximum capacity of Φ100 mm round pipe. Standard feed length is 1000 mm and can be built longer. Spindle runs at 60 / 120 RPM on a 4.5 / 5.5 kW motor.

A manual saw drifts. Not much on any single cut, but across several hundred pieces the variation accumulates and the parts at the end of the run no longer match the setup. It surfaces at assembly, not at the saw. Programmed feed means piece 400 is the same length as piece 1.

Blade surface speed has to come down for stainless and go up for mild steel. Running the wrong speed is the fastest way to lose a blade, so the machine offers 60 and 120 RPM rather than a single compromise setting.

Yes — round, square, rectangular and profile pipe and bar, in carbon steel, stainless and other metals. Section shape affects the clamping arrangement more than the cut itself.

Cutting runs under coolant, which is what protects the blade and gives a clean face. A cooler pump is part of the machine. Blade life on a dry cut drops sharply, so it is not a component worth working around.

Related Models

Other Automatic Pipe Cutting Machines

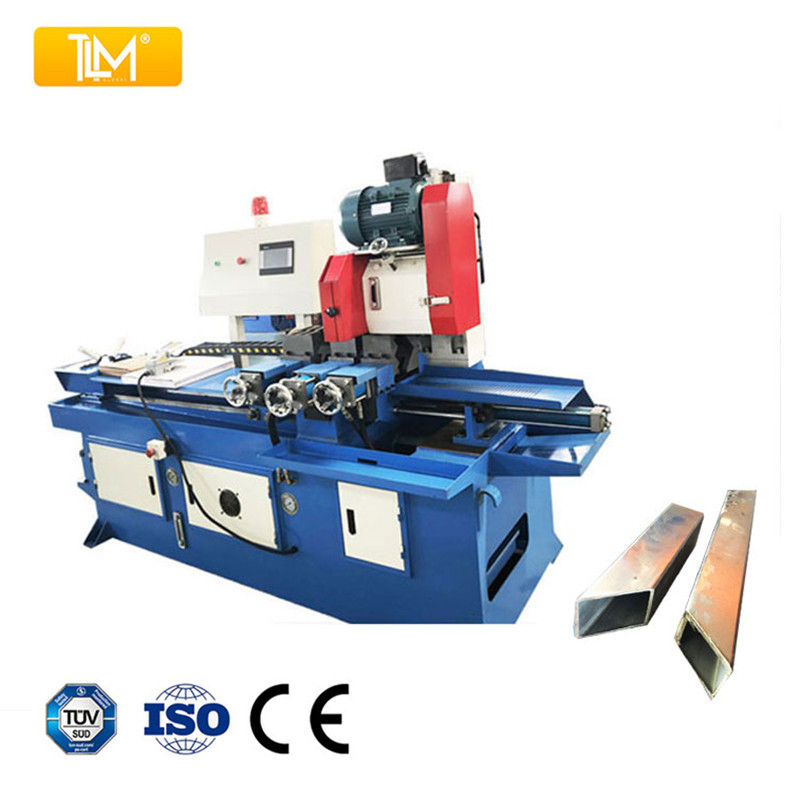

425CNC Automatic Pipe Cutting Machine
