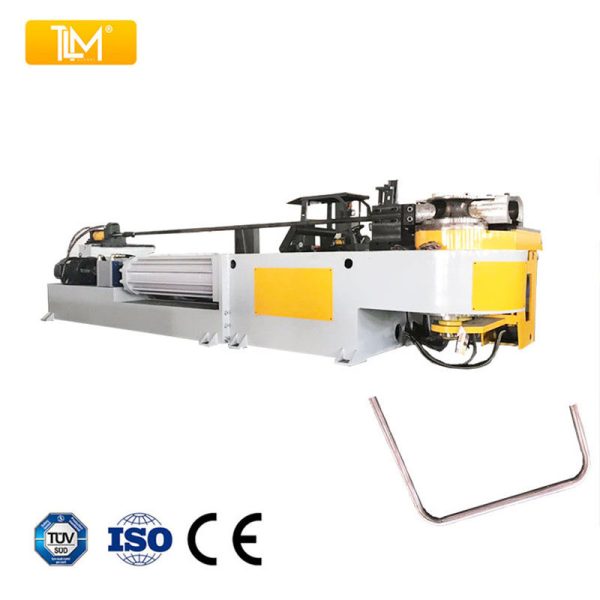

NC Semi-Automatic Tube Bender

38NC NC Semi-Automatic Tube Bender

NC semi-automatic tube bender for tube up to Φ38.1 × 2 mm. At 74°/s it has the fastest head in the NC range, which pays off on short bends run in volume — furniture frames, handrails and light structural work. Hydraulic bending with a 1850 mm mandrel, digital angle control repeatable to ±0.1°.

Max bending
Φ38.1X2 mm
Mandrel length
1850 mm
Bending speed
74 °/s
Bending precision
±0.1°
Max bending degree
185°
Pipe material
mild steel, stainless steel, copper, aluminum ...
  • CE, ISO9001, UL & EAC marked
  • Non-standard machine customizable
  • Overseas installation & training
Download Catalogue
Overview

Product Details

Overview

The 38NC tube bender is an NC hydraulic machine for tube up to Φ38.1 × 2 mm in mild steel, or Φ31.75 × 1.5 mm in stainless. A 4 kW hydraulic unit drives the bend arm; the operator feeds and rotates the tube between bends, and the angle is set digitally and stopped automatically.

At 74°/s this is the fastest head in the NC range. Bend die, clamp die, pressure die, wiper die and mandrel are matched to your tube and centre-line radius — a bender without the right dies cannot make your part, whatever its rating says.

Specifications

NC Semi automatic

B Hydraulic auxiliary driving

Max bending
Φ38.1X2 mm
Mandrel length
1850 mm
Bending speed
74 °/s
Bending precision
±0.1°
Max bending degree
185°
  • Working light
  • Water cooling
  • Pipe material: mild steel, stainless steel, copper, aluminum …
  • Round / square / rectangle / profile … pipes and bars
  • CE, ISO90001, EAC, UL marked

Optional equipment

MP Auto rotating pipe

L
Left direction bending
P
Punching
C
Cutting

Safty cover
Stopper (length measurement)
Fan / Water / Oil cooling system
Bend 1.0XD radius, or more tight radius
Tie rod bars (support arm)

Tooling

Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die – nylon material
Standard: Sealing ring, sensors, spanner, operation manual

Applications

Where The 38NC NC Semi-Automatic Tube Bender Goes To Work

From automotive exhaust lines to shipyard structures, Telhoo machines form round, square and profile tube in mild steel, stainless steel, copper and aluminum for repeatable, high-volume production.

Sample bent steel, stainless, copper and aluminum tube parts produced on Telhoo pipe bending machines
Bent tube chair frame produced on a Telhoo pipe bending machine
Real PartsFrom loose bends to finished frames — round, square and profile tube in steel, stainless, copper and aluminum.

Automotive Exhaust & Frames

Muffler and exhaust pipe, seat frames and chassis tube in round and profile sections.

HVAC & Refrigeration

Air-conditioning coils, heat pump lines and copper or aluminum refrigeration tube.

Furniture & Fitness Equipment

Chair and table frames, gym racks and equipment tube with clean, consistent bends.

Shipbuilding & Marine

Thick-wall carbon steel pipe for marine, offshore and structural fabrication.

Boiler & Heat Exchanger

Serpentine and coil tube for boilers, heat exchangers and power equipment.

Construction & Handrail

Stair rails, guardrails and architectural tube in stainless and mild steel.

How We Deliver

From Inquiry To Installation

1

Requirement & Pipe Analysis

We review your tube size, wall thickness, material, bend radius and target output.

2

Model & Tooling Proposal

We confirm the right model and match bend, clamp, pressure and mandrel dies.

3

Manufacturing & Assembly

Your machine is built and assembled in our 30,000 m² factory.

4

Sample Bending & Test

We bend your sample parts and inspect them before shipment, FAT on request.

5

Export Packing & Shipping

Heavy-duty seaworthy packing, full documents and door-to-door logistics.

6

Install, Train & Support

Overseas installation, operator training and long-term spare parts.

Why Telhoo

A Pipe Bending Partner, Not Just A Machine

Jiangsu Telhoo has manufactured CNC and NC pipe bending machines for over 35 years and exports to buyers in more than 65 countries. Every machine is backed by in-house R&D, full tooling support and after-sales service.

  • In-house R&D, machining and assembly
  • CE, ISO9001, UL and EAC certified
  • Non-standard and OEM machines built to your line
Telhoo By The NumbersZhangjiagang, China
Experience
35+

Years manufacturing pipe processing machinery

Facility
30,000 m²

Modern production plant with in-house R&D

Export
65+

Countries served across five continents

Response
24 h

Typical reply time on your quotation

Certifications

Quality You Can Verify

Every Telhoo machine is built under an ISO 9001 quality system and CE certified for the European market, with UL and EAC compliance available. Full certificates and test reports are provided with your order.

  • ISO 9001:2015
  • CE Marked
  • UL
  • EAC
Request A Quote

Get A Tailored Quote For The 38NC NC Semi-Automatic Tube Bender

Send us your pipe diameter, wall thickness, material and bend radius. Our engineers confirm the right model, tooling and options, and reply with a detailed quotation.

  • Reply within 24 hours by a real engineer
  • Free tooling and configuration advice
  • Your enquiry is kept strictly confidential
Tell Us Your Requirement

Fields marked * are required.

Export & Delivery

From Our Factory To Your Floor

Your machine is tested, crated and loaded in our own Zhangjiagang yard, then shipped by sea with full export documents — so it arrives ready to install.

Telhoo pipe bending machine being crated and braced for export01

Crating & Bracing

The machine is wrapped, braced and lifted into a custom case so nothing shifts in transit.

Iron-frame export packaging for a Telhoo CNC pipe bending machine02

Iron-Frame Packing

An iron-frame base and sealed case, rated for long ocean freight.

Container loading of a Telhoo CNC pipe bending machine at the factory03

Container Loading

Loaded into 20ft, 40ft or open-top containers in our own yard, with photos before departure.

Telhoo machines leaving the factory by container truck for worldwide export04

Worldwide Shipping

Shipped by sea to buyers in 65+ countries, with complete export paperwork.

Iron-frame packaging, container loading and export documentation are a standard part of every Telhoo order — supported by our own foreign-trade team.

FAQ

38NC NC Semi-Automatic Tube Bender — Common Questions

An NC bender controls the bend angle digitally but the operator feeds and rotates the tube by hand between bends. A CNC bender drives feed and rotation with servos from a stored program. For single-bend parts and short runs the NC is faster to set up and considerably cheaper; once a part needs several bends at different planes in sequence, the CNC pays back.

There is no fixed lower limit on the machine itself — the limit is the tooling. The 38NC is rated to Φ38.1 × 2.0 mm in carbon steel at the top end, and below that the practical floor is set by how small a bend die and clamp die can be made for your radius. Send the tube size and radius and we confirm.

Stainless work-hardens and needs far more bending force for the same section, so the 38NC is rated Φ38.1 × 2.0 mm in mild steel but Φ31.75 × 1.5 mm in stainless. Quoting the material with the tube size matters — a machine sized on carbon steel figures will stall on stainless.

Yes, with matched tooling. Square and rectangular section needs its own bend die, clamp die and pressure die profile, and the achievable radius is usually larger than for round tube of the same size because the flat faces buckle more readily.

As many as the tube length and the mandrel allow. Maximum mandrel length is 1850 mm on this model, and each bend is set individually by the operator, so multi-bend parts are possible but slower than on a CNC where the sequence is stored and repeated automatically.

185 degrees. The extra five degrees past 180 exist for springback: you overbend slightly, the tube relaxes back, and the finished angle lands where you wanted it.
