Overview

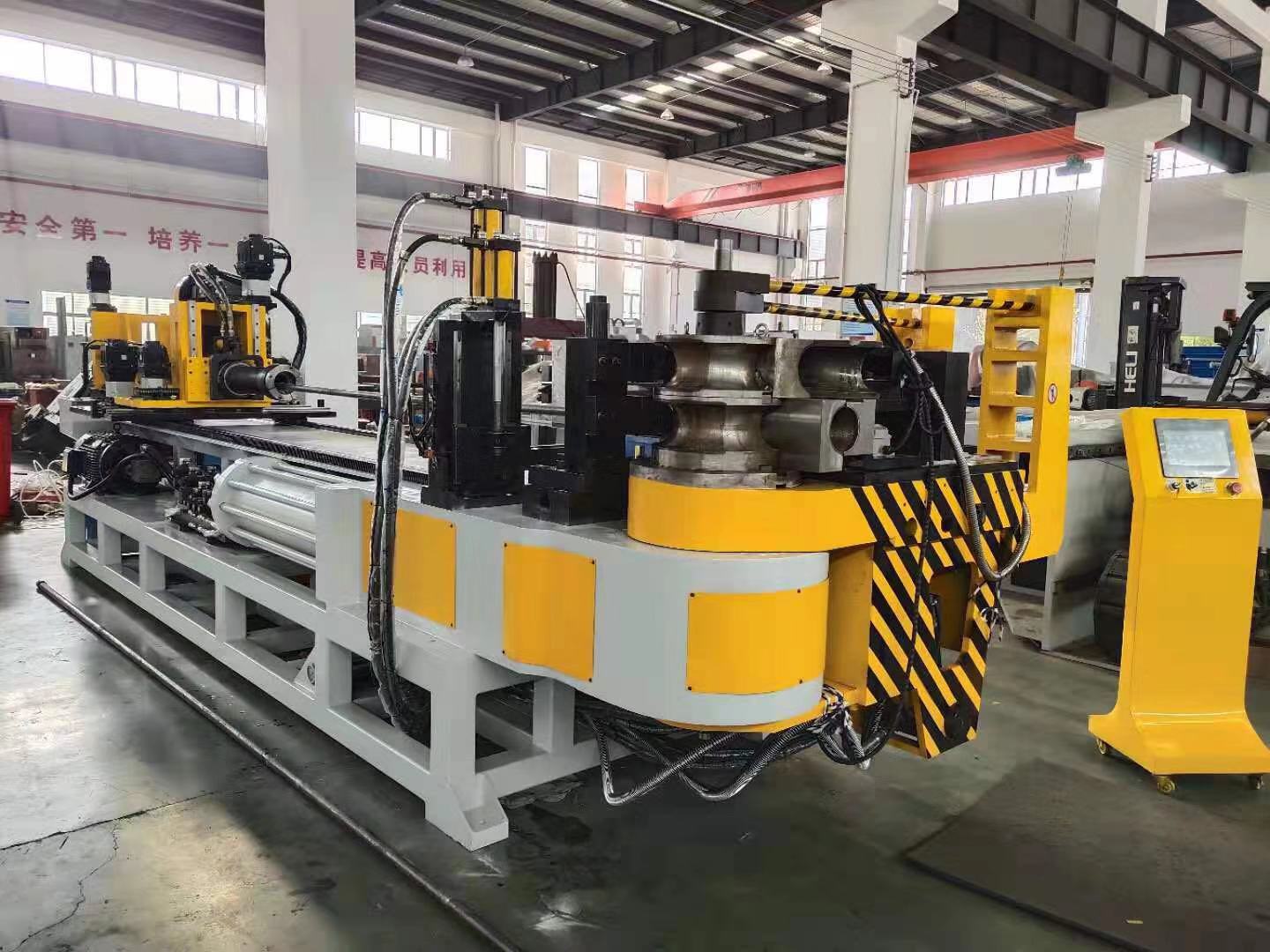

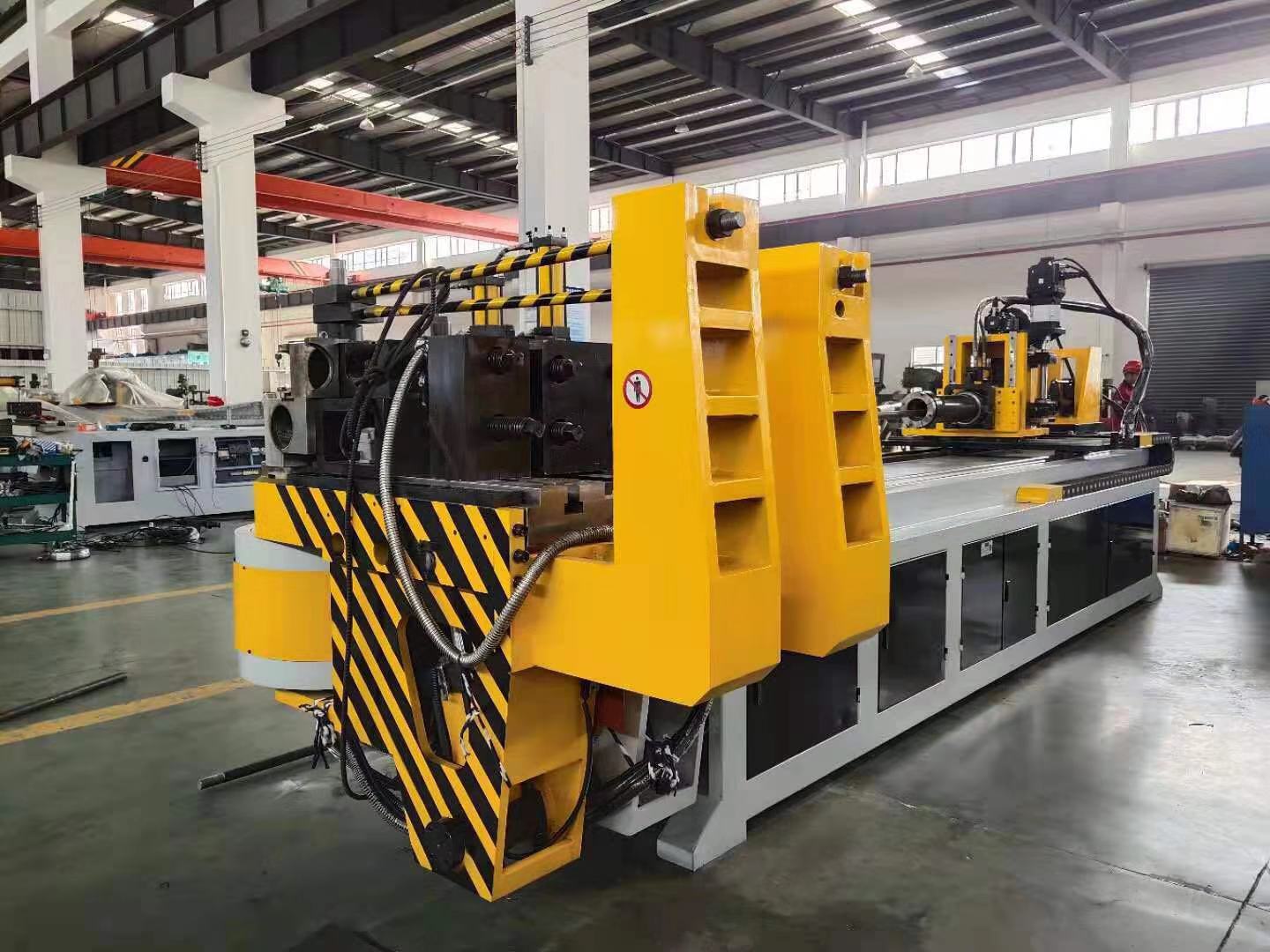

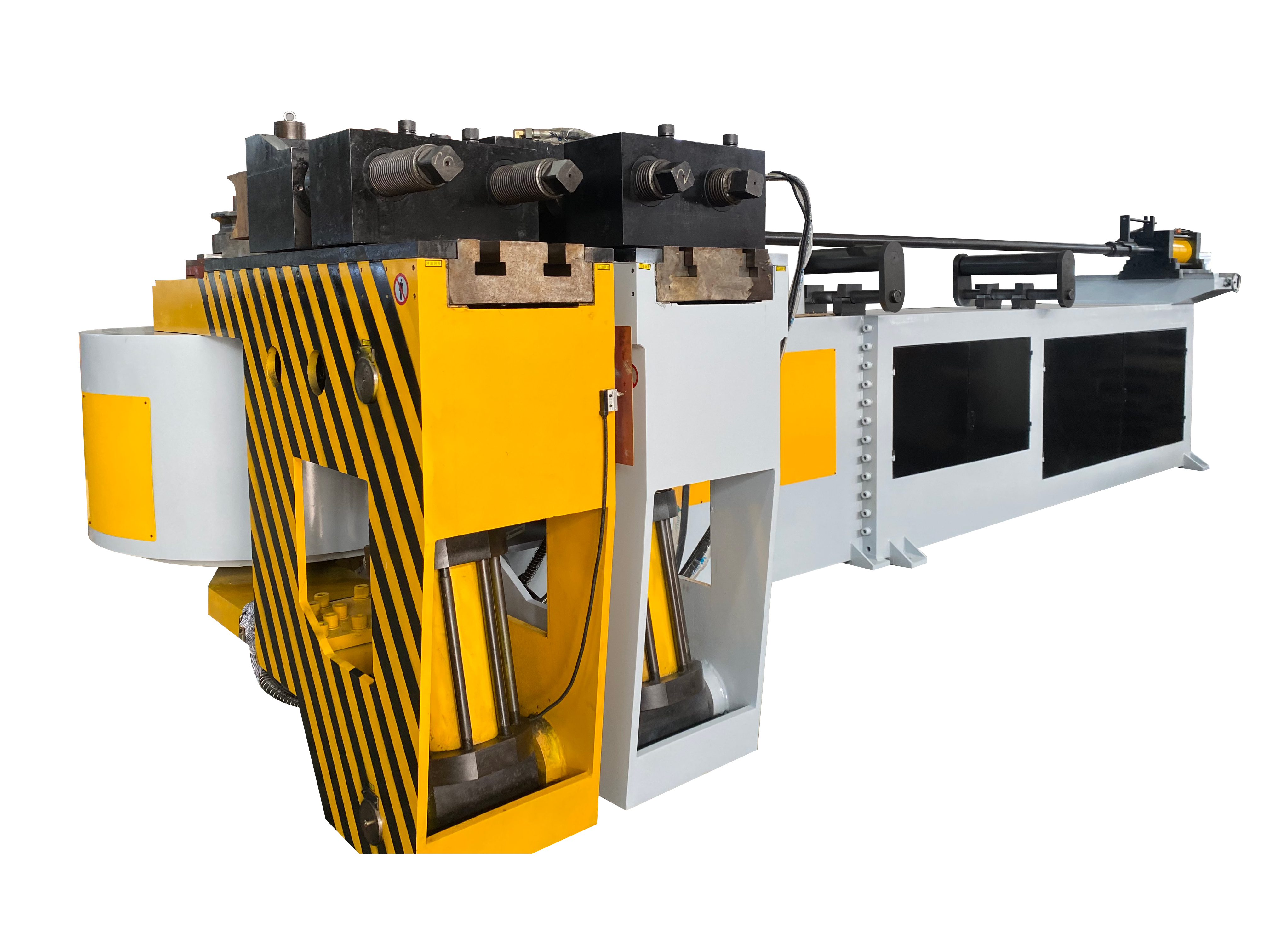

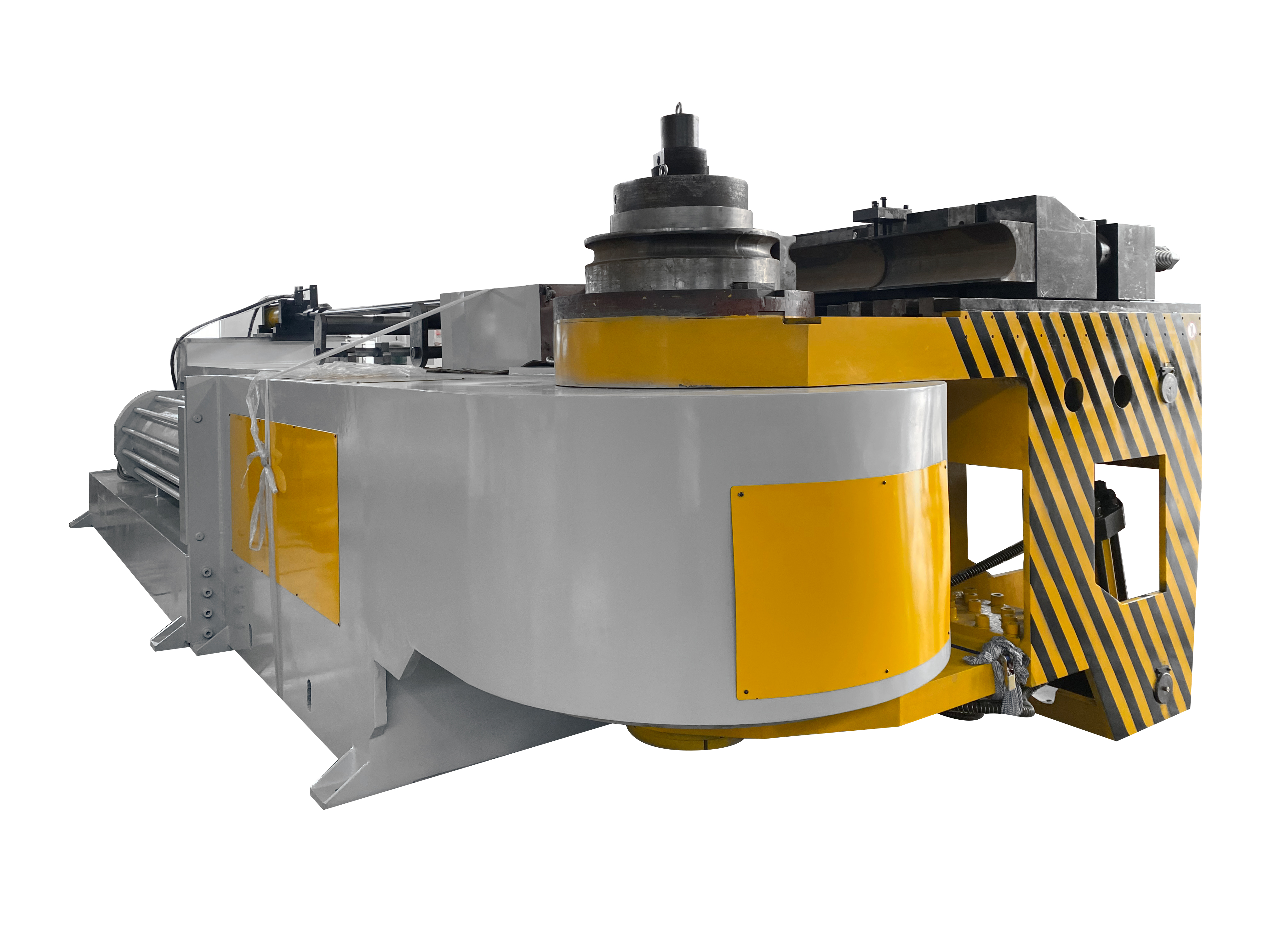

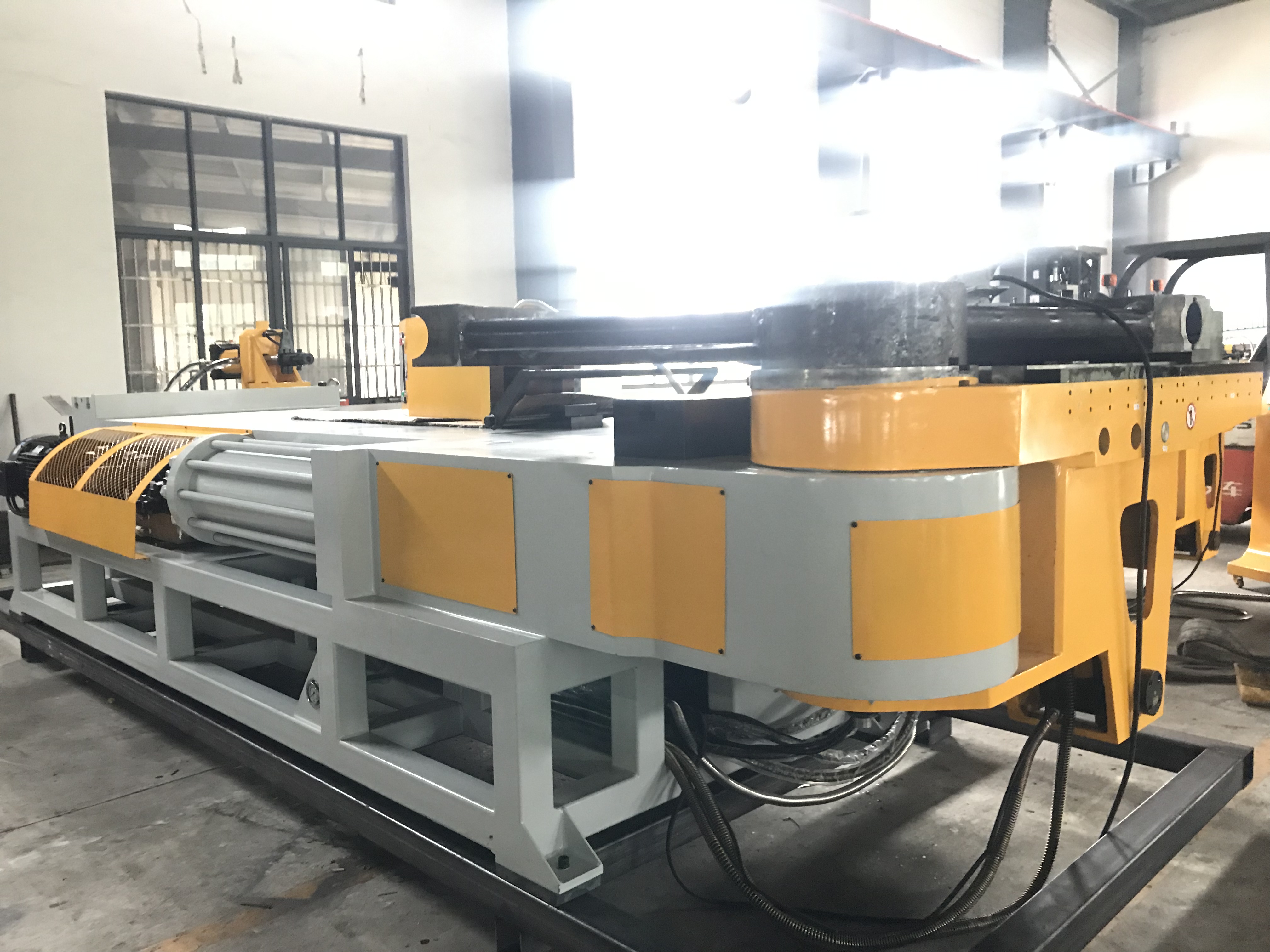

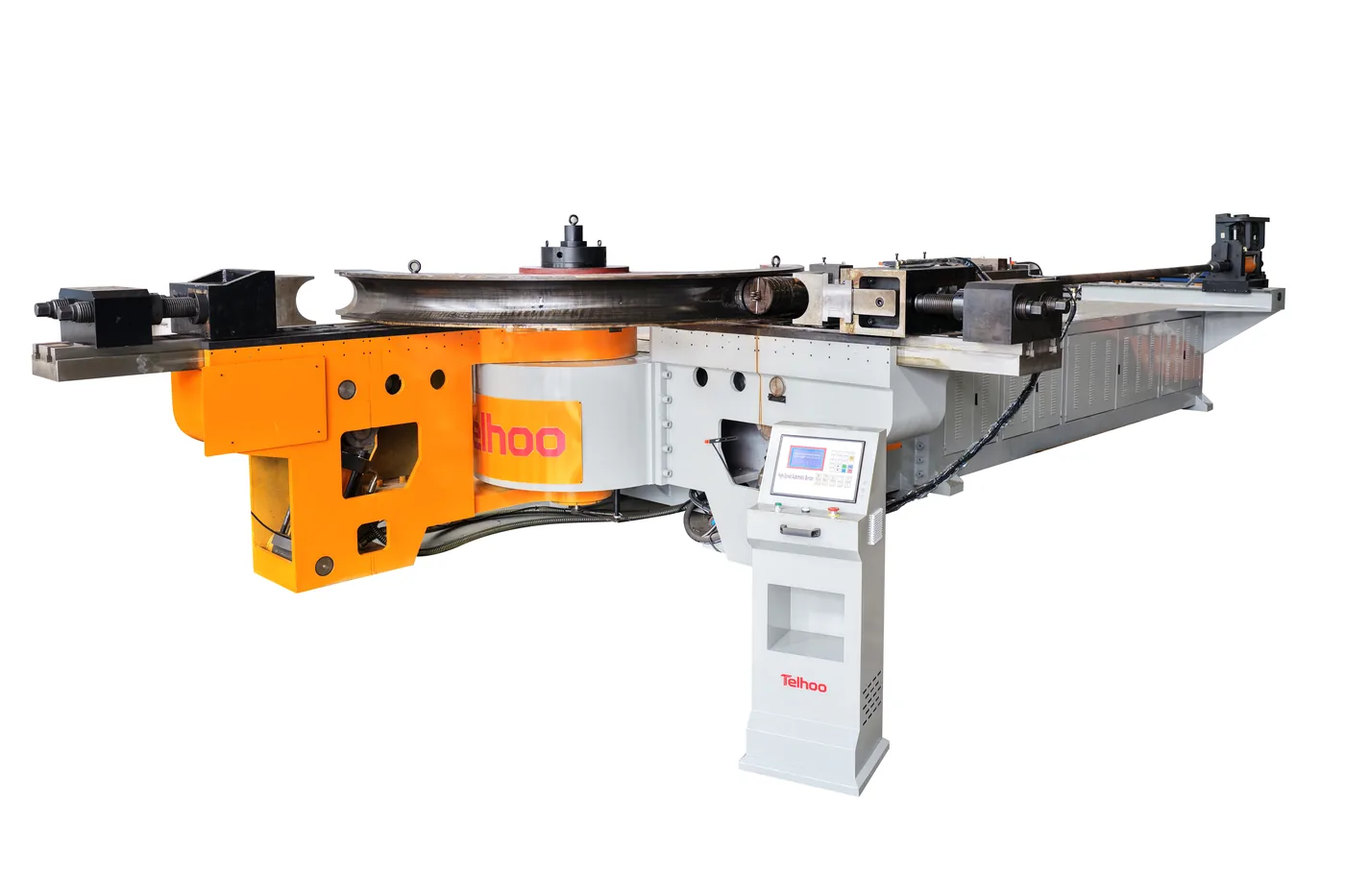

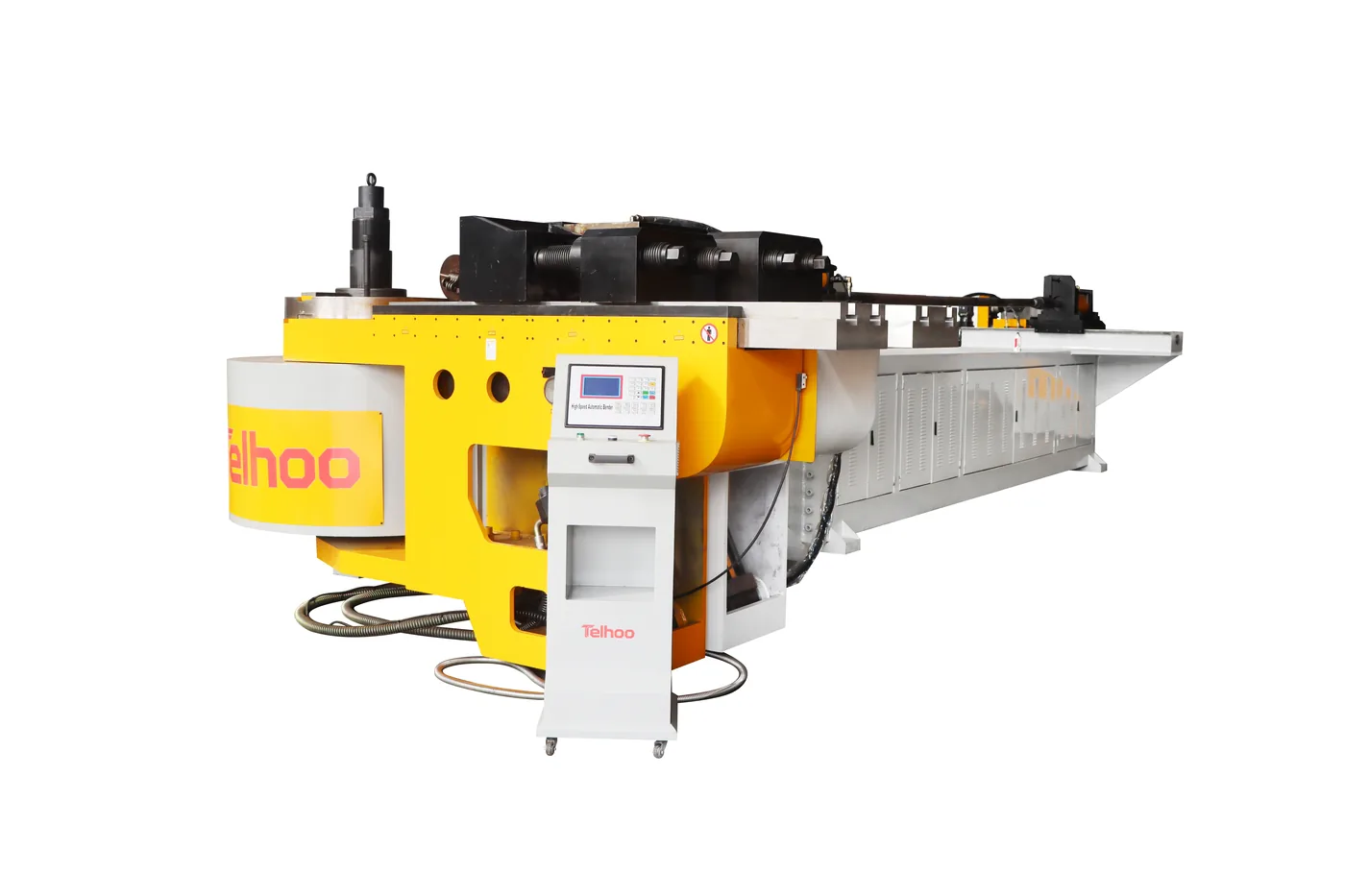

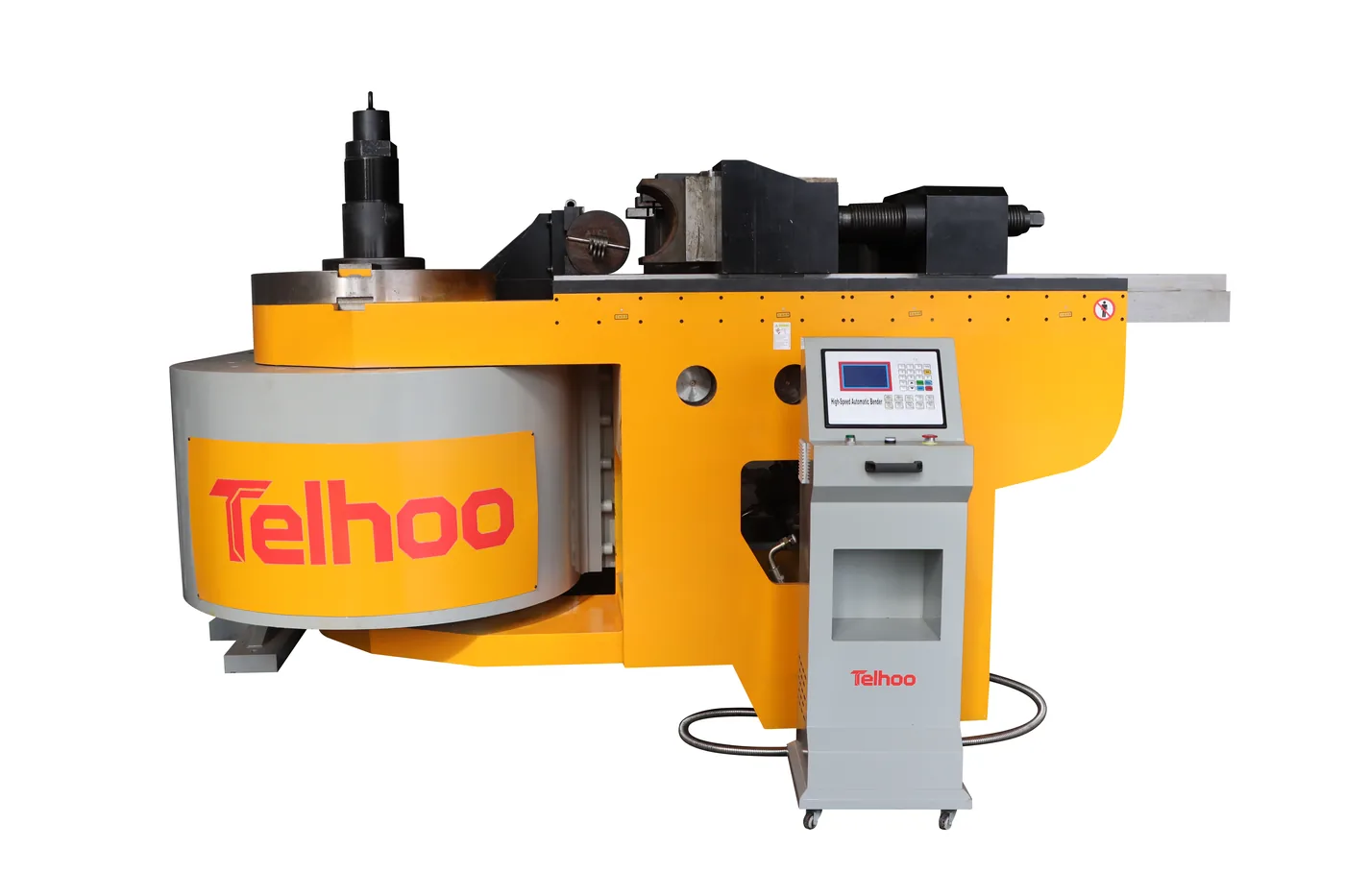

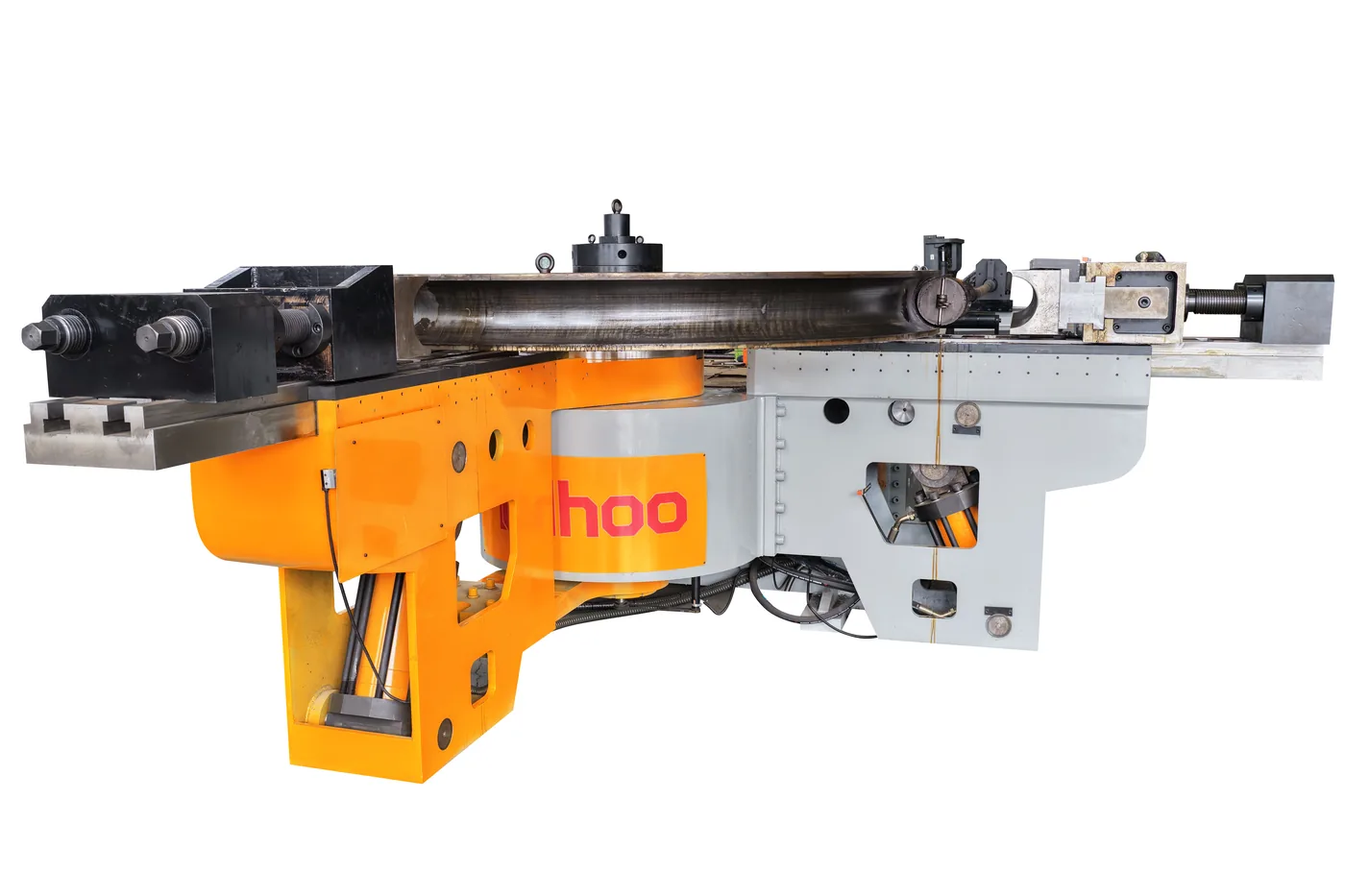

The 219NC tube bender is the largest NC hydraulic pipe bender Telhoo builds: Φ219 × 20 mm in mild steel, Φ219 × 12 mm in stainless, 55 kW, 18 tonnes, with a 5500 mm mandrel and a 1000 mm maximum bend radius.
It bends to 190° where the rest of the NC range stops at 185°. Those extra five degrees are overbend allowance: springback grows with wall thickness and material strength, and at a 20 mm wall the pipe relaxes back noticeably after the dies release. The extra travel is what lets the finished angle still reach a true 180° on heavy section.
Specifications
NC semi-automatic tube bender for large-diameter, thick-wall pipe. Hydraulic pipe bending, manual feeding and rotating, hydraulic clamping. NC digital angle control with automatic stroke limit for uniform, repeatable bends.
- Max bending
- Φ219 × 20 mm

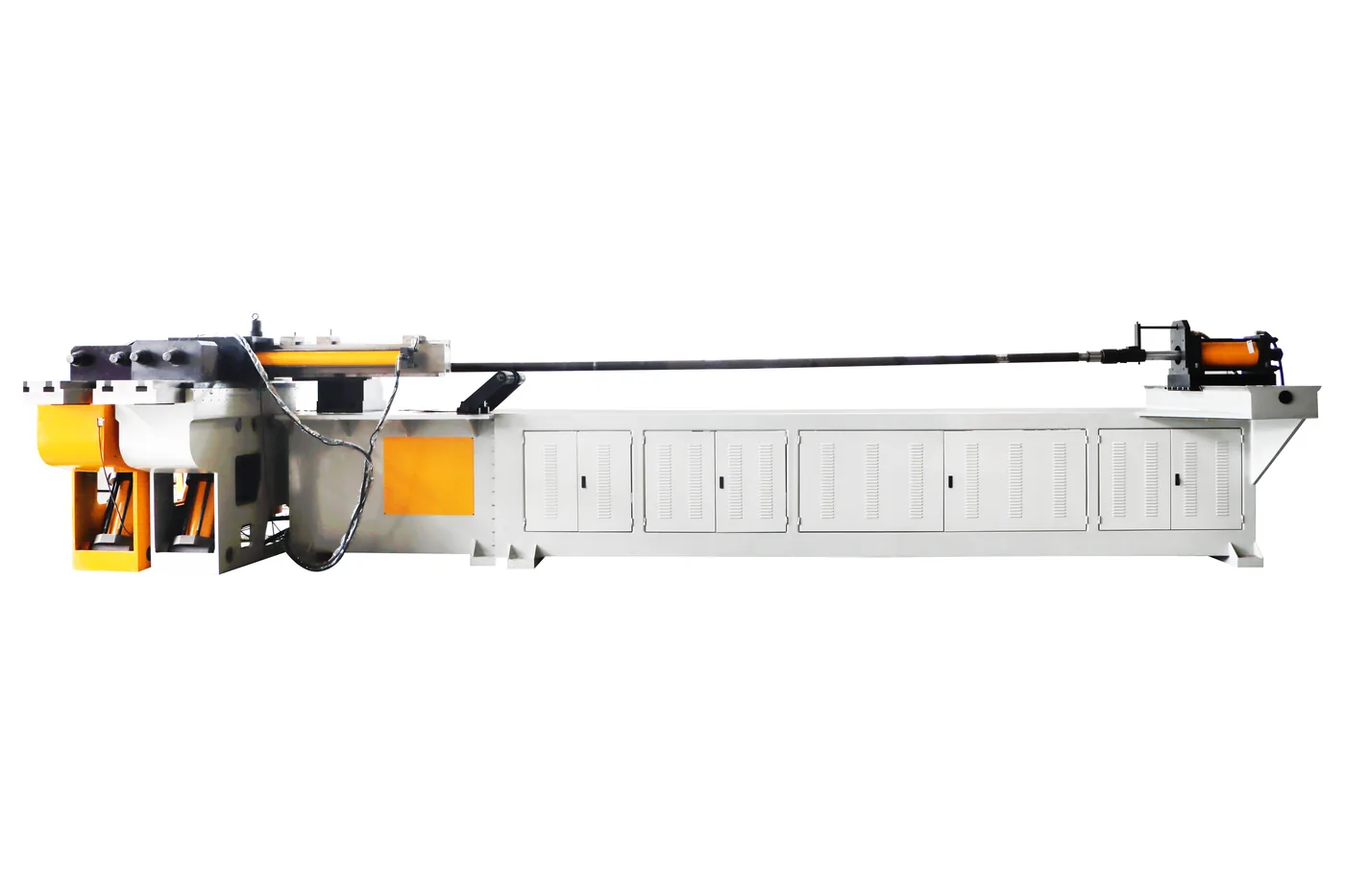

- Mandrel length
- 5500 mm
- Bending precision
- ±0.1°
- Max bending degree
- 190°

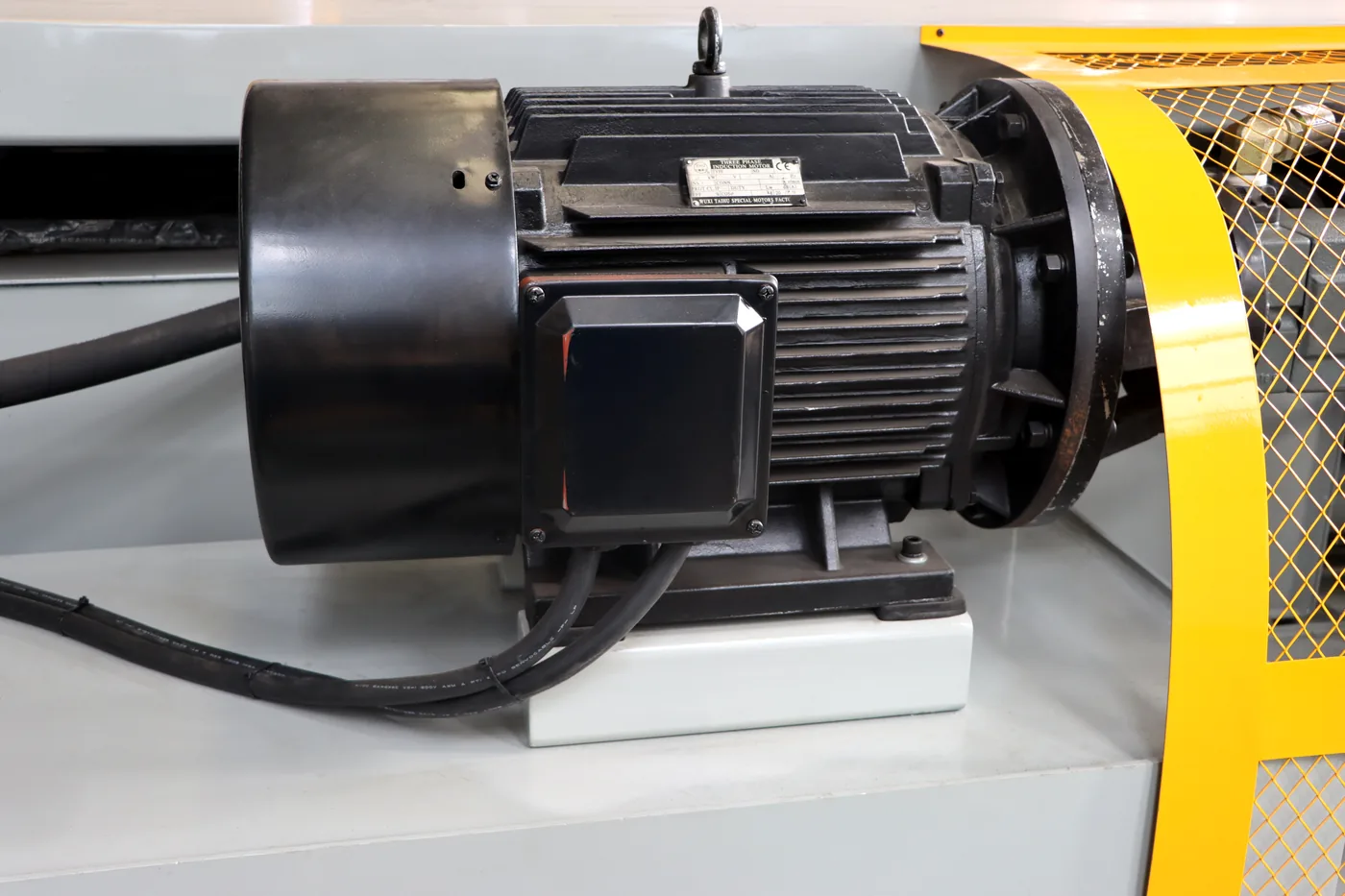

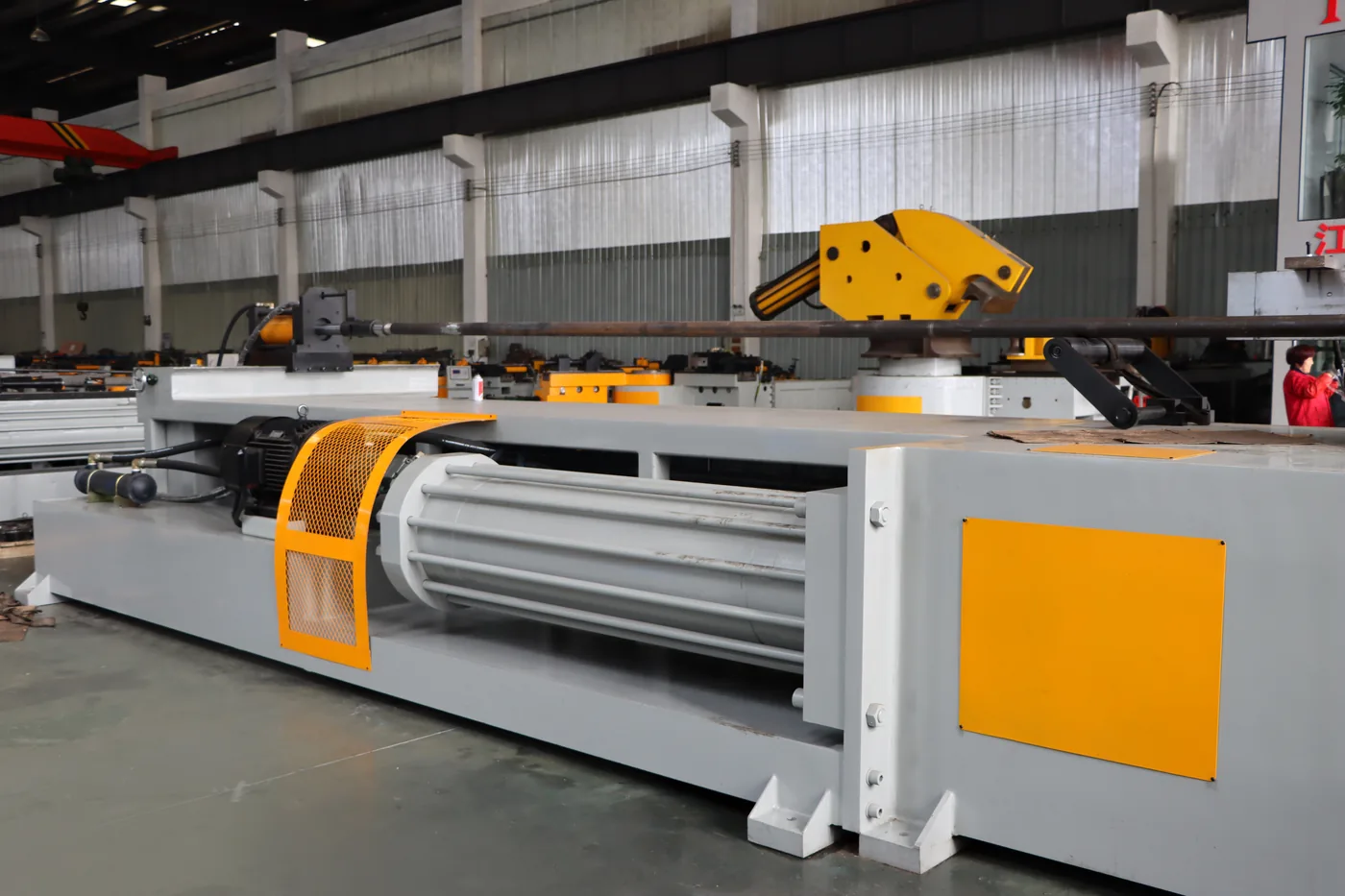

- Heavy hydraulic power unit
- Integrated thick cast body for 24-hour operation

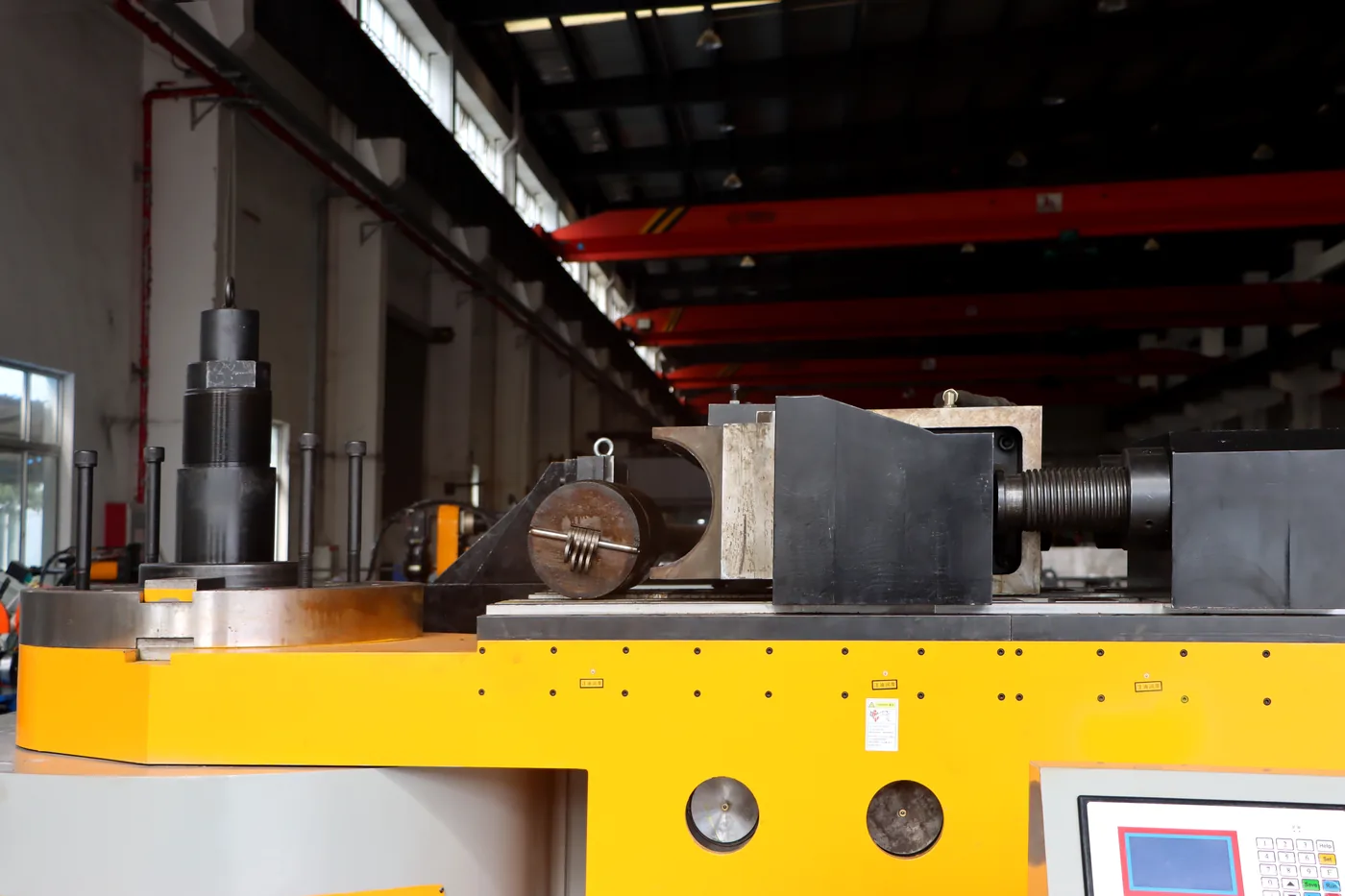

- Quick-change modular molds
- Pipe material: mild steel, stainless steel, galvanized pipe …
- Round / square / profile pipes
- CE, ISO9001, UL, EAC marked
Optional equipment
- R
- Rolling function
- P
- Punching
- C
- Cutting
- Safety cover

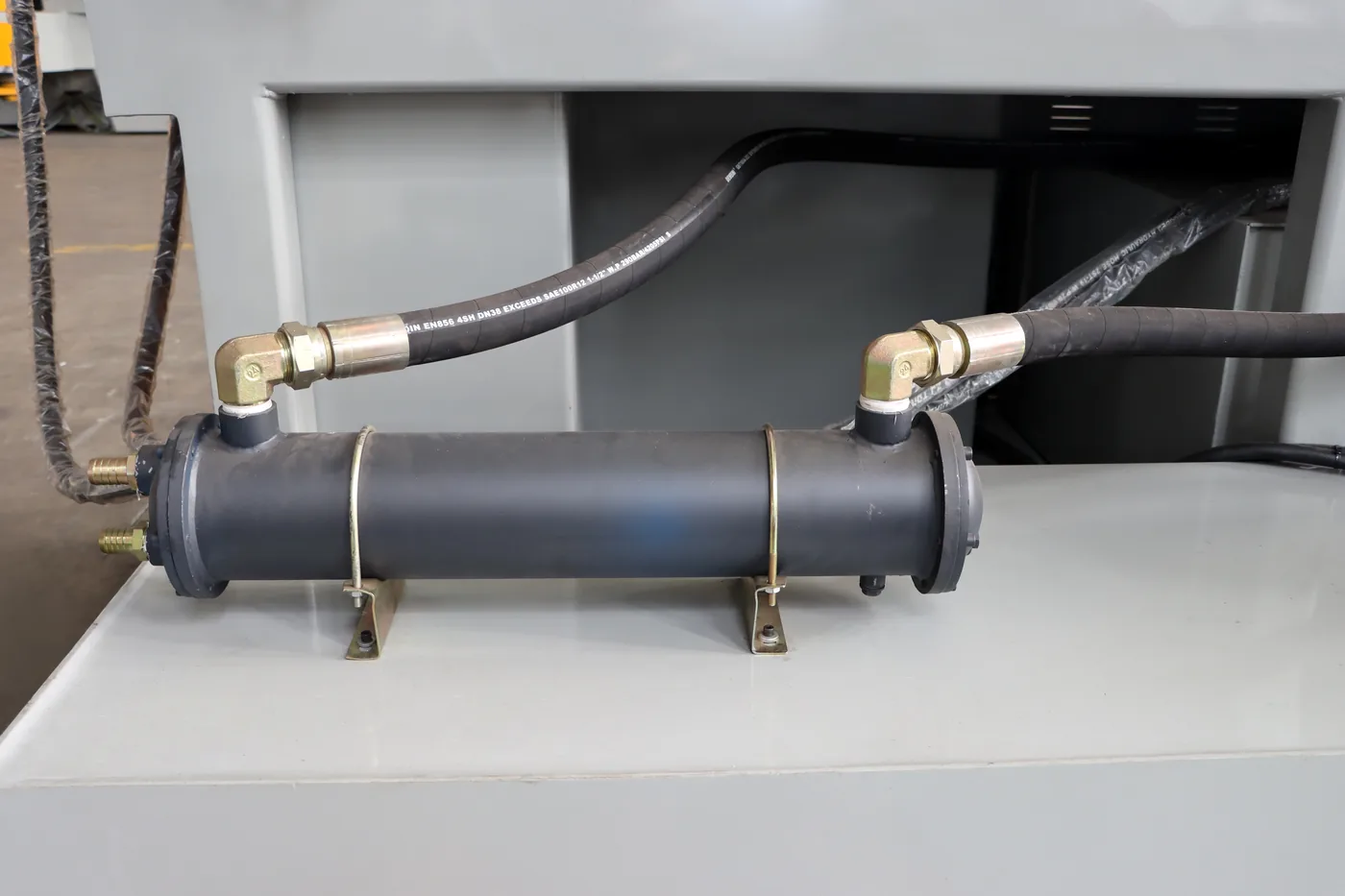

- Fan / Water / Oil cooling system
- Auxiliary feeding / supporting rack
Tooling
Standard tool: 45# steel
Optional tool: Cr12 material
Standard：Sealing ring, sensors, spanner, operation manual
