Tube End Forming Machine

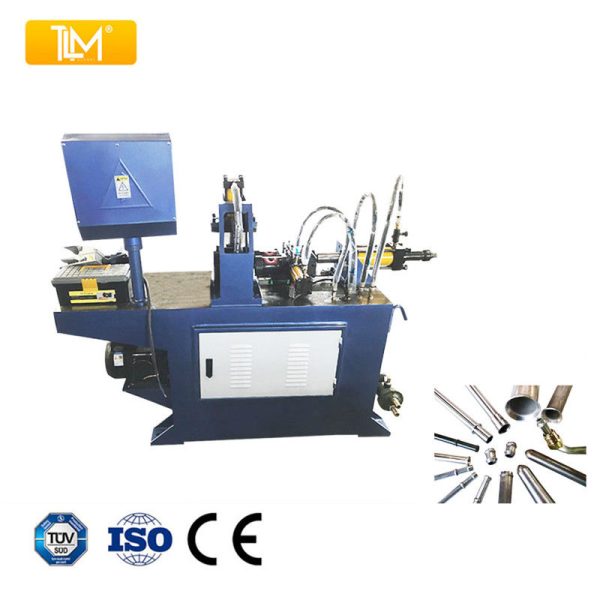

SG80-2 Tube End Forming Machine

Steps up to a 200 mm working stroke on tube up to Φ80 × 2.0 mm, at 14 MPa with a pass of 130 mm in 5–6 seconds. That extra stroke matters when the formed section sits well back from the tube end, as it does on exhaust and air-conditioning assemblies. 1800 kg.

Max fitting
Φ80 × 2.0 mm
Working stroke
200 mm
Hydraulic pressure
14 MPa
Working speed
130 mm / 5–6 s
Machine weight
1800 kg
Dimensions
260 × 75 × 145 cm
Pipe material
mild steel, stainless steel, copper, aluminum ...
  • CE, ISO9001, UL & EAC marked
  • Non-standard machine customizable
  • Overseas installation & training
Download Catalogue
Overview

Product Details

Overview

The SG80-2 tube end forming machine is a two-station hydraulic unit taking fittings up to Φ80 × 2.0 mm, with a 200 mm working stroke at 14 MPa and a 130 mm pass in 5 to 6 seconds. 1800 kg on a 260 × 75 × 145 cm footprint.

The 200 mm stroke is what separates this model and the SG120-2 from the smaller two, which stop at 120 mm. Stroke decides how far back from the tube end the formed section can sit — on exhaust assemblies and air-conditioning lines the feature is often well inside the tube, and that is a stroke question rather than a diameter one.

Specifications

Two stations standard

Max fitting
Φ80 × 2.0 mm
Working stroke
200 mm
Hydraulic pressure
14 MPa
Working speed
130 mm / 5–6 s
Machine weight
1800 kg
Dimensions
260 × 75 × 145 cm
  • Working light
  • Pipe material: mild steel, stainless steel, copper, aluminum …
  • Round / square / rectangle … pipes
  • CE, ISO90001, EAC, UL marked

Optional equipment

III Three station
IV Four station

  • Double head forming
  • Safty cover
  • Infrared alarm device

Tooling

Standard tool : Cr12 material
Standard: Sealing ring, sensors, spanner, operation manual

Sample parts

Tube ends formed on Telhoo end forming machines. Part size and forming route are confirmed against your drawing.

Thick-wall steel tube with an expanded end, formed on Telhoo end forming machines
An expanded end on thick-wall tube. Expanding takes more tonnage than reducing, which is what the 14 MPa system pressure is for.
Applications

Where The SG80-2 Tube End Forming Machine Goes To Work

From automotive exhaust lines to shipyard structures, Telhoo machines form round, square and profile tube in mild steel, stainless steel, copper and aluminum for repeatable, high-volume production.

Sample bent steel, stainless, copper and aluminum tube parts produced on Telhoo pipe bending machines
Bent tube chair frame produced on a Telhoo pipe bending machine
Real PartsFrom loose bends to finished frames — round, square and profile tube in steel, stainless, copper and aluminum.
