Most buyers think about speed at the bend head. They compare degrees per second, feed speed and rotation speed, and they assume a faster machine makes more parts. On many parts that assumption is wrong, because the head is moving for only a small share of the time. The rest goes on loading the tube, positioning it, unloading the part, moving it to the next station and waiting for someone to do all of that again.
An automated tube bending cell attacks that other share of the cycle, and robotic tube bending is the label most people use for the same idea. This article explains where the time goes, what a cell contains, what Telhoo’s published automation project actually did, and how to tell if your parts suit a cell or a stand-alone bender. It is written for the person deciding whether to add automation, and it stays with what has been published and what can be calculated.

Where the Time Goes in a Tube Bending Cycle
Think about one part with four bends. The bend head turns the tube through a total of a few hundred degrees, the feed carriage moves it between bends, and the rotation axis turns it between planes. All of that is machine motion, and a servo CNC bender does it fast. It is the part of the cycle that already gets the attention. Before and after it, a person or a robot loads a tube into the clamp and takes the finished part out.
Here is an example for illustration, with assumed values. A part has four bends totaling 270° of turn. On a bender that turns at 100°/s the bending itself takes 2.7 seconds. Suppose feed and rotation between bends add another four seconds. A person loading and unloading by hand might take ten seconds in all, so the full cycle is about 16.7 seconds and the head is bending for only one sixth of it.
| Cycle element (example values) | Manual loading | Automated cell |
|---|---|---|
| Bending, 270° at 100°/s | 2.7 s | 2.7 s |
| Feed and rotation between bends | 4.0 s | 4.0 s |
| Loading and unloading | 10.0 s, in series | Overlapped with the next part |
| Cycle | About 16.7 s | About 6.7 s |
Treat that as an upper bound and not a promise. A real cell also includes end forming, part transfer and checks, and each of those takes time of its own. The published project below reports a reduction of more than 30%, which is a more realistic figure for a full cell than the arithmetic above. The point of the example is the shape of the result. Making the head 20% faster would save about half a second, while overlapping the handling saves several seconds.
This is why a faster bender can be a poor purchase and a slower bender with a loader a good one. Heavy pipe shows the same effect more strongly. Telhoo’s 168CNC page notes that at Φ168 × 15 mm the bend is slow and deliberate, at 8°/s, and that a heavy part with two or three bends is dominated by loading and not by degrees per second. A pipe of that size weighs around 57 kg per meter in steel, so loading is a crane job.

What an Automated Tube Bending Cell Contains
A cell is not a stand-alone bender with a robot added. It is built around a specific part, and it covers the bender, the tooling, the loading and unloading method, the transfer between stations and the control that keeps them in step. The usual elements are these.
| Element | What it does | Why it matters |
|---|---|---|
| Automatic loader | Takes tubes from a bundle or magazine and presents one at a time | Removes the operator from the feed side of the cycle |
| Seam detection | Finds the weld seam on welded tube and orients it | Keeps the seam in the same place relative to the bend plane on every part |
| Handling robot | Moves the tube or part between stations | Overlaps transfers with the next bend |
| Servo CNC bender | Forms the bends, with all axes under program control | Repeatability across the run and stored programs for each part |
| End forming machine | Expands, reduces or shapes the tube ends | Finishes the part in the same cell |
| Central controller | Starts, sequences and monitors every station | One screen and one program for the whole chain |
| Safety enclosure | Keeps people away from moving machinery | Allows monitoring from outside the guarded area |
Each element has a job, but the value comes from how they are tied together. A loader that is quick and a bender that is quick still lose time if the robot waits for one of them. Synchronizing the motions is therefore the real engineering of a cell, and it is the part that cannot be bought off a catalog.
A Published Telhoo Project in Detail
Telhoo published an automation project for AMN, a fabricator of automotive parts, on its news page about the AMN automation cell. The customer was investing in automation for higher production rates, shorter lead times, better product quality and improved safety, and it wanted to make several types of headrest frames.
The cell that resulted combines an automatic loader with seam detection, a six-axis handling robot, an end forming machine and a CNC tube bender, all monitored through a centralized controller. The bender is from Telhoo’s U series, which bends left and right in the same process, with draw bending, roll bending and pressure-assisted bending, multiple stacks and multiple radii. It carries eight electric servo axes and a direct gear transmission to hold precision on multi-bend parts through production.
The published result is a cycle time cut by more than 30% compared with the previous process. The cell also gave flexibility to produce headrests in different shapes, with short setup times and adjustments. Operators can create new parts and simulate the bending process in the controller before running them, and a central station can monitor the system from outside the safety area. The FAQ on that page puts the lesson plainly. The gain came from shorter cycle times through synchronized loading, bending and unloading, and not from bending any faster.

Why Seam Detection Matters on Welded Tube
A detail worth explaining is the seam detection on the loader. Welded tube carries a seam along its length, and where that seam sits relative to the bend changes how the tube behaves. The outside of a bend stretches the most, so seams are usually kept away from that zone, and the seam position is a setting that belongs in the setup sheet and not in the memory of the operator.
By hand, finding the seam and loading the tube the same way every time is slow and varies from person to person. In a cell the loader finds the seam, orients the tube and presents it in the same position on every part. The benefit is consistency, and it removes one source of variation that would otherwise show up as occasional rejects in a long run. The related issues of wall thinning and ovality are covered in tube bending defects and what causes each one.
Synchronizing the Cell Is the Real Work
In a cell the cycle time is set by the slowest station and not by the sum of all stations, provided the stations overlap. While the bender forms one tube, the robot unloads the previous part and the loader presents the next. The end former works on the part that came off the bender before. A cell that is well balanced keeps every station busy, and a cell that is poorly balanced leaves one station waiting for another.
That is why the published project describes engineers working to improve and synchronize every motion. Three questions guide the design. Which station is slowest for this part? Can its work be split or overlapped? And what happens at the handoffs, where a part passes from one machine to the next and any misalignment costs time or damages the tube?
Handoffs deserve most of the attention. A robot that grips a thin-wall tube too hard can ovalize it, and a part that is released a fraction late stalls the next station. These are small details, but in a cell that runs for a full shift they decide whether the planned cycle time is reached. The control strategy that sits above them is covered below.
Control, Simulation and Remote Monitoring
A cell runs from one control layer. In the published project that layer provides simulation of the bending process, so a new part can be programmed and checked before it uses any tube, and an industrial PC outside the guarded area that monitors the system. The same page says the benders can be integrated into factory MES systems and with other Telhoo machines such as sawing, laser cutting and end forming, and that remote monitoring lets a plant follow production from anywhere.
Simulation matters more in a cell than on a stand-alone bender, because a collision between robot, tube and machine is expensive. Checking the sequence on a screen first is far cheaper than finding the clash on the floor. Stored programs also make changeover a matter of selecting a part and changing tooling, which is what allows a cell to run several part numbers and not just one.
The arithmetic behind each program, meaning cut length, bend allowance and springback compensation, is the same as on any CNC bender, and it is worked through in pipe bending calculations.
Which Bender Suits a Cell

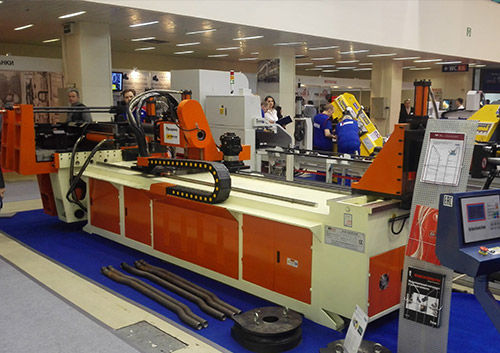

A cell needs a bender whose motion is fully under program control, since a robot cannot wait for an operator to set a stop by hand. That points to a servo CNC machine and not to a semi-automatic one. Telhoo’s product pages describe the range accordingly. One CNC model page says it runs semi-unattended with the operator loading each tube, and that fully unattended running needs an automatic loader, available as an option, which turns the machine into a production cell. The 168CNC page says automatic loading and unloading is available and is usually specified at that size.
The CNC automatic pipe bending machine category lists robot loading and unloading as an option across the range, and the company describes building non-standard machines and automated cells that combine cutting, bending, chamfering and end forming, with robot loading, around each customer’s parts and output. A semi-automatic NC tube bender suits shops where the operator is part of the cycle, and the usual route to a cell starts from the CNC range.
Two supporting stations often join the same line. The automatic pipe cutting machine range supplies blanks at a repeatable length, and the tube end forming machine range finishes the ends. Telhoo’s category page says cutting, bending, chamfering and end forming cells can be linked, with robot loading and unloading available.
Loading Methods
Loading is the first thing an automated tube bending cell changes, and there is more than one way to do it. The right method depends on tube size, weight and how the tube arrives.
| Method | How it works | Best for | Watch for |
|---|---|---|---|
| Operator loads each tube | A person places the tube in the clamp for every part | Low volume and frequent changes | Handling stays in series with the bend |
| Automatic loader from a bundle | A loader separates tubes and feeds them one by one | Medium and high volume of one tube size | Bent, burred or uneven tube can jam it |
| Robot picking and placing | A handling robot picks tube or part and moves it between stations | Cells with several operations | Grip force on thin wall and release timing |
| Crane assisted loading | A hoist lifts heavy pipe onto the supports | Heavy, long pipe with few bends | Operator safety and positioning accuracy |
Most real cells mix two of these. A bundle loader feeds the line and a robot moves the bent part on to end forming. The mix is chosen from the part and not from a standard layout.
Handling Thin Wall Tube and Heavy Pipe
Thin wall tube and heavy pipe call for opposite precautions, and a cell has to respect both. On thin wall tube the danger is crushing. A robot gripper that clamps too hard ovalizes the tube before it is bent, and ovality at the start of a cycle shows up as a fit problem at the mandrel. Soft or contoured gripper pads, controlled grip force and gripping on the part of the tube that will be cut off or clamped anyway all help.
On heavy pipe the danger is weight. A Φ168 × 15 mm steel pipe runs around 57 kg per meter, so even a short length is beyond manual handling and a long one needs lifting equipment and support rollers or a run-out table. Telhoo’s CNC page for that size says loading is a crane job. In that setting automation buys safety first, because it keeps people out of the zone where the load moves, and it also buys consistent positioning from one pipe to the next.
Layout and Footprint Choices
The shape of a cell follows the part. A short part with a modest number of bends suits a compact layout with the robot at the center, reaching the loader, the bender and the end former from one position. A long part needs the stations in a line, with space on either side of the machines for full-length tube and for access when dies are changed. Telhoo’s product pages note the same point for stand-alone machines, asking for clear length either side for loading full-length tube and access for die changes.
Three layout questions are worth settling early. Where does the finished part leave the cell, and how is it inspected? How will operators reach the bender for die changes without stopping the rest of the cell for long? And where do scrap and test pieces go? A cell that handles the good parts well and has no answer for these three tends to lose its time gains in the gaps between production runs.
Tooling and Setup Inside a Cell
A cell changes how tooling is used. On a stand-alone bender an operator is present to change dies and adjust a mandrel, and a few minutes of setup is accepted. In a cell, every minute of setup is lost production for the whole chain, so tooling has to be quick to change and repeatable when it goes back on.
Multi-stack and multi-radius tooling are the main tools for this. With two or more die sets mounted on the bend head, a part with several radii runs without a change. For a family of similar parts, a common radius ladder keeps the number of die sets small, as set out in tube bend radius standards and how to choose a radius. Stored programs then carry the springback compensation for each part and material lot, so a changeover is a selection and a die swap and not a trial and error session.
Mistakes to Avoid When Buying an Automated Tube Bending Cell
The same few mistakes recur when a cell is specified, and most are easy to avoid once they are named.
Sizing the bender and forgetting the rest. If end forming takes longer than bending, the end former sets the cycle and a faster bender buys nothing. Time every station on a real part before choosing equipment.
Ignoring the quality of the incoming tube. A loader and a robot expect tube that is straight, cut to a consistent length and free of burrs in the bore. Tube that varies feeds poorly and jams the loader, and burrs score the mandrel. Cutting and edge preparation upstream are part of the cell design.
Balancing the cell around the average part. The heaviest and most delicate part sets the limits of the loader and the gripper. A cell designed around the average part will struggle with the extremes.
Skipping the trial. Simulation catches collisions but not everything. A trial with real tube, real tooling and the real material lot shows how the handoffs behave and how springback compensation holds.
Forgetting maintenance access. A guarded cell can be hard to reach. Plan for lubrication, wiper replacement and die changes, because these are routine tasks and they happen every shift.
Measuring Whether the Cell Works
Judge an automated tube bending cell on a small set of measures taken before and after. The cycle time per part is the obvious one, and it should be measured over a full shift and not for a single part. Scrap and rework show whether handling is gentle enough. Changeover time shows whether the cell stays flexible. And the share of the shift the cell is actually running shows whether it is balanced or starved by one station.
An automated tube bending cell should also be judged on how it fails. A good cell stops cleanly when a tube is missing, a grip is lost or a station faults, and it reports which station stopped and why. A cell that stops without saying where costs more time than the automation saved, so ask how faults are shown on the central screen and how quickly an operator can clear them and restart without losing the part sequence.
The published AMN project reports the first of these, a cycle time reduction of more than 30%, together with short setup times and adjustments across different headrest shapes. Those are the two things a cell should deliver together, a faster cycle and a changeover that does not erase it.
When an Automated Tube Bending Cell Pays and When It Does Not
Automation mostly pays at high volume, but not only there. The other case is heavy or awkward parts, where handling is slow and physically demanding whatever the quantity, and automation buys safety and consistency and not only cycle time. Four questions sort most situations.
| Situation | Usual verdict | Why |
|---|---|---|
| A few part numbers at high volume | Cell pays | Handling is repeated many times and setup is rare |
| Many part numbers with frequent changes | Cell needs flexible tooling and programs | Changeover time can erase the gain if tooling is not quick to change |
| Heavy or long tube with few bends | Automation pays through safety and consistency | Loading dominates the cycle and is hard on operators |
| Low volume and mixed batches | Stand-alone NC or CNC is usually better | The setup changes often enough that full automation would not pay |
| Parts that need seam orientation or cosmetic care | Cell helps | Consistent handling removes a source of variation |
The honest test is to count how often a part changes and how long the handling takes next to the bending. If handling is a small share, a faster bender helps more. If handling is the larger share, a cell addresses the right problem. If the product mix changes weekly, check that tooling and program changeover are quick before committing, and read the machine-side tradeoffs in hydraulic vs electric tube bender and how to pick.

How to Plan the Cell
Planning goes best in a fixed order, because each step narrows the next.
- Time the current cycle and separate bending, feed and rotation, loading, unloading and transfer.
- List every part number, its annual quantity and how often it changes.
- Decide which operations belong in the cell, such as cutting, bending, end forming and chamfering.
- Choose the bender from the part, with servo axes and the tooling for the radii on the drawings. The method is in tube bending tooling and how to match a die set to the job.
- Design the loader, the robot and the handoffs around the heaviest and most delicate part, not the average one.
- Simulate the sequence, then run a trial with real tube before the cell is accepted.
Send the part drawings, the annual quantity of each part number and your current cycle time, and we can tell you whether the parts suit a cell or a stand-alone machine. Tell us about the part, or see the wider options on our tube bending solutions page.
