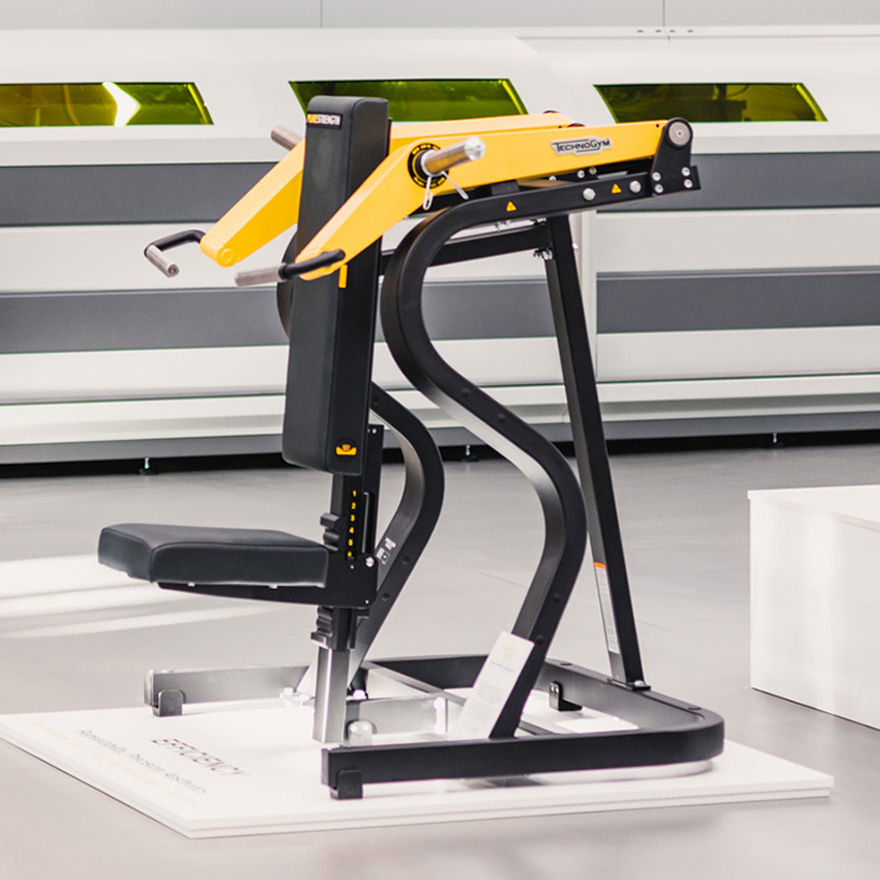

Open a gym machine and look at what carries the load. The seat support, the press arms, the base and the handles are tube, cut to length, bent, formed at the ends and welded into a frame. Home fitness equipment follows the same logic with lighter tube and more folding joints. Because the frame is the product, the way the tube is bent decides how the machine looks, how long it lasts and how safe it is to handle.
This article explains what fitness equipment makers ask of tube, how those demands turn into bending, end forming and cutting requirements, and what Telhoo’s machines can and cannot do for the work. It is written for engineers and buyers who make or specify frames. The wider picture across industries is in tube bending applications by industry and what each needs.

What Fitness Equipment Makers Ask of Tube
Four requirements come up again and again. Design means the frame has to take the shape the designer drew, with bends in the right places. Durability means the frame carries user load and repeated stress for years, and the outside of a bend, which thins as it stretches, is often the most stressed point. Usability means one machine has to suit users of different heights, strengths and abilities, so frames carry adjustment points and sliding tubes. Compactness matters most at home, where the machine has to fold or stand in a small room.
Appearance has become a fifth requirement. Many machines are sold on their looks, and a smooth, even bend with no ripples, clamp marks or visible weld seam is part of the product. Where the frame is chrome plated, every flat spot and fine wrinkle on the outside of a bend shows, because plating acts like a mirror.
Tube Sections Used in Fitness Frames
Round tube is the most common section, since it bends easily and holds its shape. Square and rectangular tube are widely used for bases and uprights because the flat faces are easy to weld and drill, and some designers choose oval or other special sections for appearance. The table sets out the trade.
| Section | Why it is used | What to watch in bending |
|---|---|---|
| Round | Easiest to bend, strong for its weight, smooth look | Ovality and wrinkling on thin wall |
| Square | Flat faces for welding and drilling | Corners work-harden and the flats dish inward |
| Rectangular | Stiff in one direction, slim profile | The easy way and the hard way differ greatly |
| Oval or special | Distinctive appearance | Dedicated tooling for the section |
Telhoo’s machine pages list round, square, rectangular and profile tube, and say that square and profile sizes are confirmed per job. Oval and other special sections need their own tooling, so send the section drawing before assuming a fit. The behaviour of flat sections in a bend is set out in bending square and rectangular tube.
Bending the Frame, Fixed Radii and Surface
A fitness frame mixes straight tube with bends of a few fixed radii. The practical rule is to keep the radius at about two to two-and-a-half tube diameters or more, and to use the same few radii across a family of frames, because a bend die is cut for one radius and every extra radius is another die set. Parts with two radii run without a tooling change on a machine with stacked dies, and Telhoo’s CNC range lists extra tooling stacks as an option.

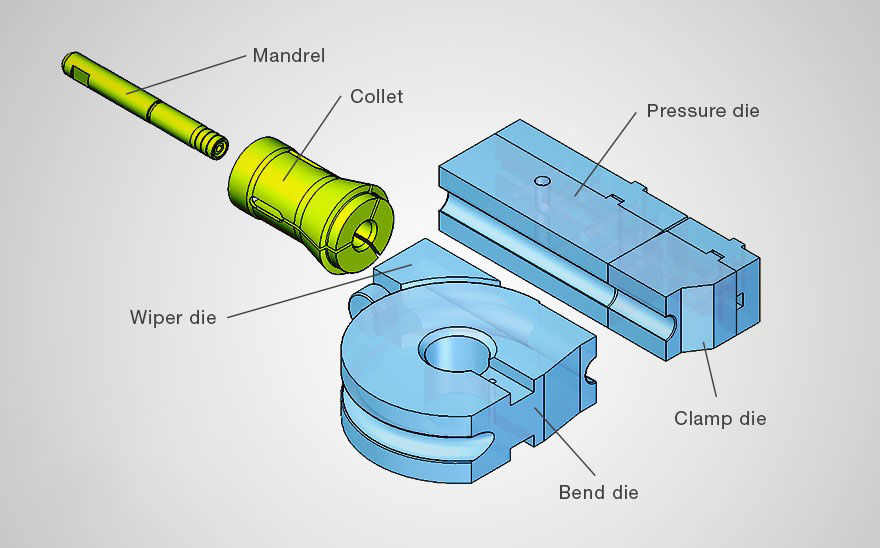

Thin wall is where fitness frames get difficult. The outside of a bend thins by about 100 ÷ (2 × CLR/OD + 1) percent as a first estimate, which is 20% at a 2D radius and 14% at 3D. On a frame member that carries load, that thinning sits at the point of highest stress, so the design wall should already allow for it. A thin wall on a tight radius also needs a mandrel and a wiper die to keep the section round and the inside free of wrinkles. The method is in tube bending wall thickness and the wall factor and tube bending tooling and how to match a die set to the job.
Finish needs attention before the bend starts. Clamp faces and dies that touch a visible tube have to be smooth and clean, the lubricant has to suit the finish that follows, and the tube has to be handled without scratches. A part that passes every dimension check can still be scrap if the plating shows a ripple.

Symmetrical Frame Members and Double Head Bending
Many frame members are symmetrical. A U-shaped leg, a handle or a base member has a matching bend at each end. On a single head bender such a part is bent at one end, taken out, turned and bent at the other. A double head bender forms both ends in one cycle, so the left and right bends match and there is no second datum to lose.
Telhoo’s SW38A is the double head model. It takes Φ38 × 2.5 mm carbon steel tube, bends at 74°/s with ±0.1° precision, makes bends 170 to 1,400 mm apart, and can bend one Φ38 tube, two Φ25 tubes, three Φ16 tubes or four Φ13 tubes in one cycle. Its page names furniture and fitness frames among the typical parts. The advantages and the cases where it is the wrong tool are in double head tube bender advantages. Parts with many bends along the length belong on a CNC bender instead.
Forming the Ends So Tubes Fit Together
Fitness frames depend on tubes that telescope into one another or accept a bearing, a plug or a pin. The ends are therefore reduced, expanded or flattened after cutting. A reduced end slides into the next tube as a spigot, and a flattened end takes a bolt.
Telhoo’s SG40-2 end forming machine takes tube up to Φ40 × 2.0 mm on a 120 mm stroke, and the larger SG models extend to Φ110 mm. Two stations run two steps in one handling, and the SG40-2 page shows a thin-wall tube reduced in several steps and a square section tapered down to a flat. The principles and limits of the process are in tube end forming explained.
Cutting Square, Deburring and Safe Edges
Every bent tube starts as a cut blank. An automatic saw that feeds to a programmed length gives blanks of the same length and a square, low-burr end, and Telhoo’s 350CNC and 425CNC do this. Cutting machine choices are compared in pipe cutting machine types.
Safety adds another step. Equipment used at home and in gyms has to be free of sharp edges and burrs, because users touch the frame. Chamfering and deburring the cut ends removes the burr that would cut a hand and also the one that would score a mandrel in the bender. Telhoo’s pneumatic chamfering machines chamfer and deburr the inner edge, outer edge and end face in one cycle on tube up to Φ50 or Φ80 mm, and the choice is covered in tube deburring machine options and when to deburr.

Home Fitness and Quick Changeovers

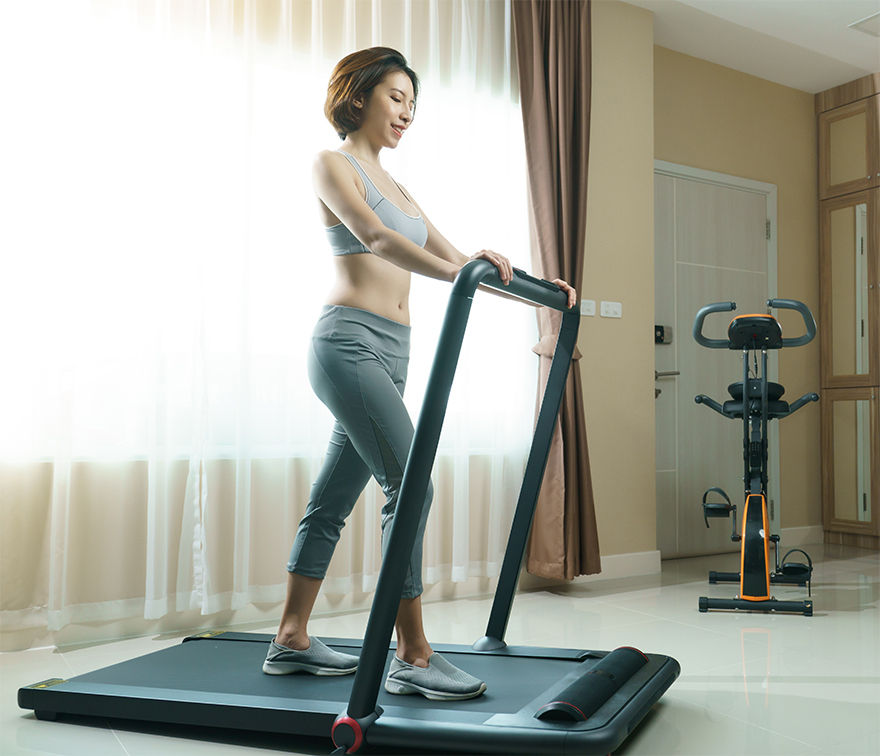

Home fitness equipment has grown quickly, and it changes what frame makers need. Machines are more compact, often fold, and are lighter, so the tube is thinner and the joints more complex. Many models share a platform with small differences, which means a plant runs many part numbers in small batches and changes over often.
That favours programmable machines. A CNC bender stores the feed, rotation and angle of every bend and the springback correction for each part, so a new part is a program change and not a manual resetting. Telhoo lists the 38CNC for tube up to Φ38.1 × 2 mm, with servo bend, feed and rotation at up to 100°/s and ±0.1° precision, and names fitness equipment among its typical work. How springback is proven and stored is in springback compensation tube bending.
Equipment standards also apply to the finished machine. Stationary training equipment is tested to standards such as the EN ISO 20957 series, and the tube frame is part of what is tested. Telhoo does not certify equipment, so check the remaining wall and the weld fit-up against your own test plan.
What to Send for a Fitness Frame Enquiry
- Tube section, outside diameter and wall, for every size in the frame.
- Material and finish, such as mild steel with powder coat or chrome plating.
- Every centerline radius and the bend angles, or the drawing.
- The end forms, such as reduced spigots and flattened ends, and how far back each sits.
- Volume and part numbers, which decide NC or CNC and whether a double head machine pays.
- Surface and safety needs, including deburring and any inspection plan.
Send those through the contact page and the engineers will reply with a machine, the tooling and a sample plan. The machines are on the double head pipe bender and CNC automatic pipe bending machine pages, and the wider plan for a line is on the tube bending solutions page.
