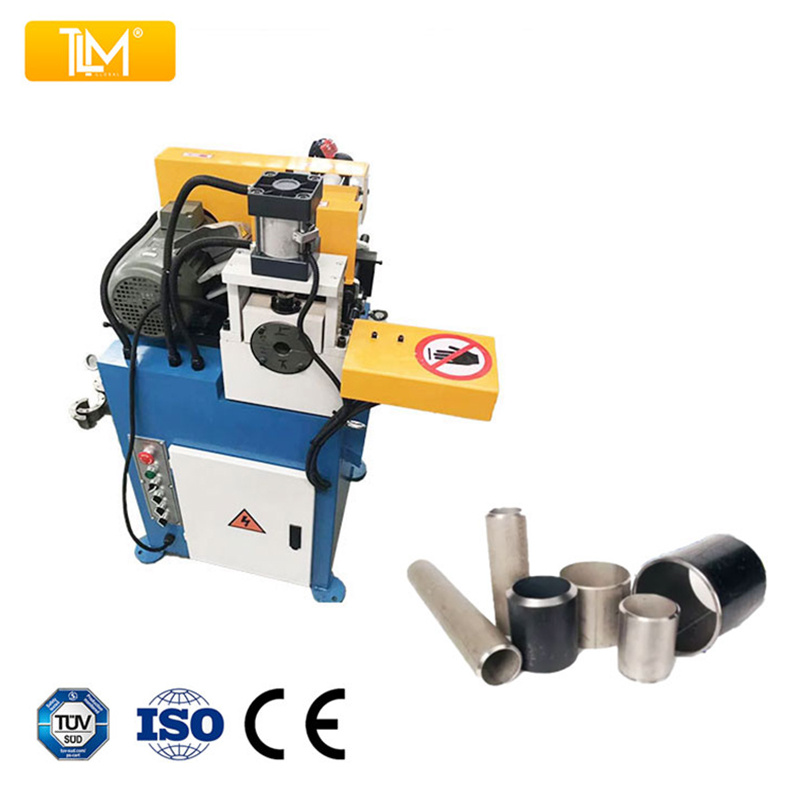

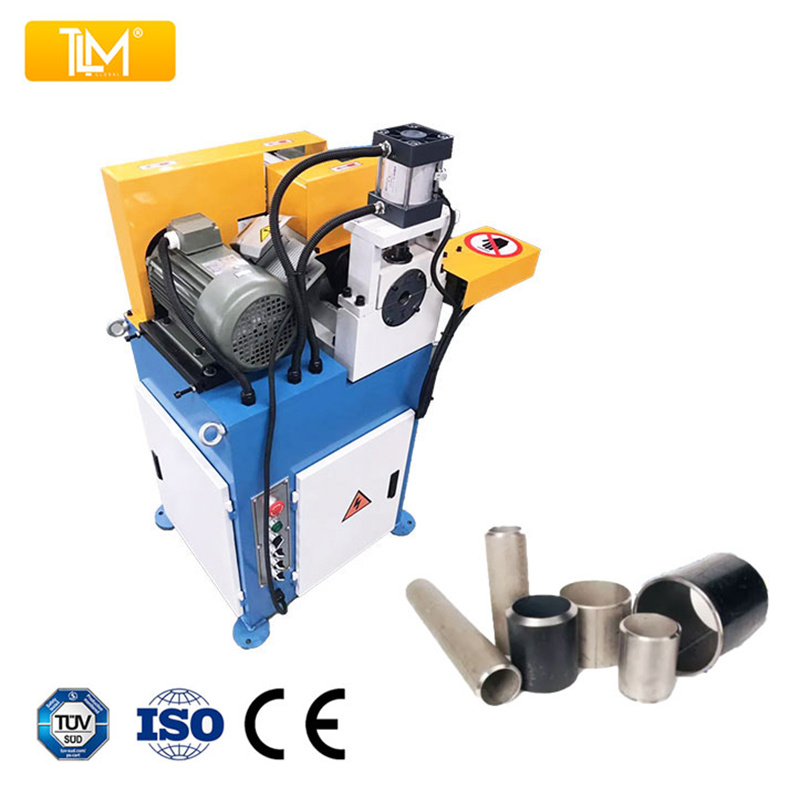

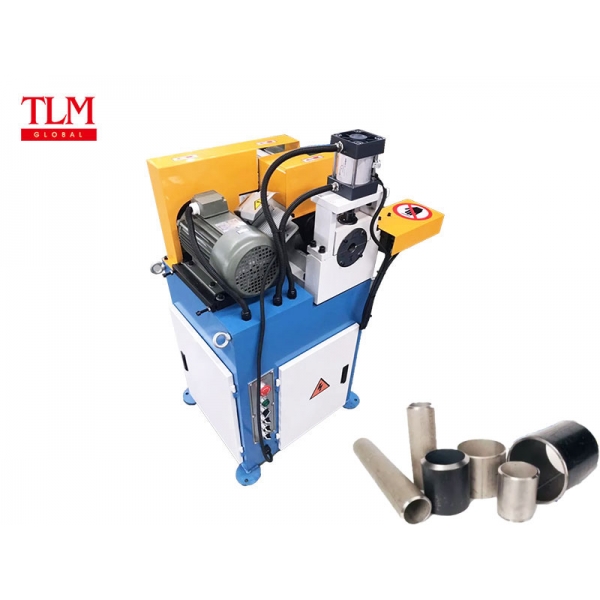

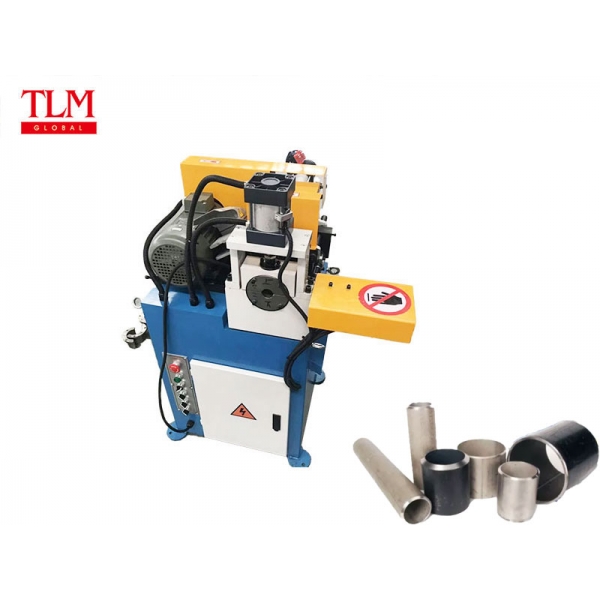

80 Pneumatic Pipe End Forming Machine

  • Feeding / retracting and clamping by pneumatic / hydraulic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results.
Direct supply from the manufacturer
Order phone:+86-13915462929
E-mail:sales@telhoopipebender.com

    SPECS

    P Pneumatic type

    H Hydraulic type

    Capacity Pipe Φ10 - 80 mm
    Bar Φ10 - 50 mm
    Cutterhead Φ12 - 80 mm
    Spindle Motor 2 HP x 4 P
    Spindle Speed 1200 / 1600 Round / min
    Air Pressure 6 - 8 kg / cm2, 120 ml / min, 0.6 - 0.8 Mpa
    Machine size 870 x 690 x 1100 mm
    Machine weight 260 kgs

    Pipe material: steel, iron, stainless steel, aluminum, bronze,
    non-ferrous metal, plastic and graphite fiber ...
    Round pipe and bar
    CE, ISO90001, EAC, UL marked

    OPTIONAL

    Cutterhead Φ3.2 - 12 mm
    Auto loading
    Custom circular clamping mold
